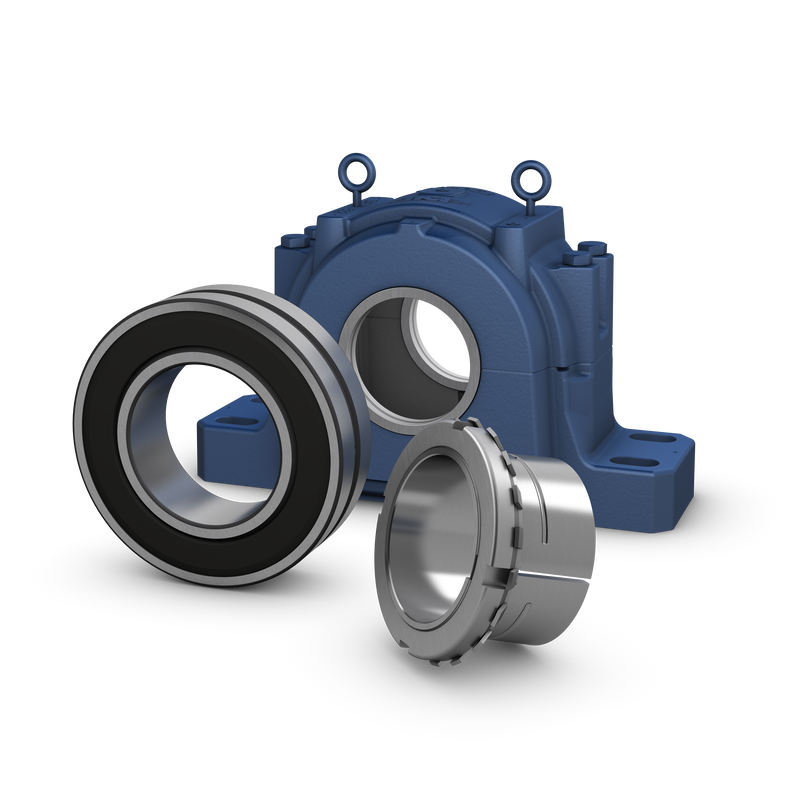

SAF and SAW split pillow blocks use a two-piece, cast metal housing with inch dimensions. With the included SKF bearings, seals, and related components, they provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment. These pillow blocks have been developed to be the best choice for design, quality, robustness, and cost efficiency.
| da |
201.613 mm
|
Shaft diameter |
|---|---|---|
| Da |
400 mm
|
Diameter of bearing seat |
|
G7
|
Tolerance class of bearing seat | |
| Ca |
117.805 mm
|
Width of bearing seat |
| A1 |
222.25 mm
|
Housing foot width |
| A2 |
304.8 mm
|
Width |
| H |
474.663 mm
|
Height |
| H1 |
241.3 mm
|
Centre height of bearing seat |
| H2 |
95.25 mm
|
Foot height |
| J |
min. 628.65 mm
|
Distance between attachment bolts |
| J |
max. 708.025 mm
|
Distance between attachment bolts |
| J1 |
133.35 mm
|
Distance between attachment bolts, axial |
| L |
831.85 mm
|
Length |
| N1 |
41.275 mm
|
Width of attachment bolt hole |
| S |
4.763 mm
|
Offset of locating bearing |
| R1 |
130.175 mm
|
Distance of drain plug from centre |
|---|---|---|
| R2 |
46.831 mm
|
Height of drain plug position |
| RG |
1-11.5 NPT
|
Thread of drain hole |
| PG |
1/4-18 NPT
|
Thread for grease fitting in cap |
| Dynamic load rating | C |
1 839 kN
|
|---|---|---|
| Static load rating | C0 |
2 360 kN
|
| Fatigue load limit | Pu |
200 kN
|
| Limiting speed |
380 r/min
|
|
| Limiting value | e |
0.25
|
| Calculation factor | Y1 |
2.7
|
| Calculation factor | Y2 |
4
|
| Calculation factor | Y0 |
2.5
|
| P60 |
423 kN
|
Safe load at 60° load angle |
|---|---|---|
| P90 |
254 kN
|
Safe load at 90° load angle |
| P120 |
160 kN
|
Safe load at 120° load angle |
| P150 |
145 kN
|
Safe load at 150° load angle |
| P180 |
173 kN
|
Safe load at 180° load angle |
| Pa |
113 kN
|
Safe load, axial |
| Housing material |
Cast iron
|
| Paint, corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass |
262 kg
|
| Cap bolt |
1-8 UNC x 8
|
|
| Number of cap bolts |
4
|
|
| Recommended tightening torque for cap bolts |
399.966 N·m
|
|
| SAE grade of cap bolt |
5
|
|
| Eye bolt |
1/2-13 UNC
|
|
| Number of eye bolts |
2
|
|
| Recommended diameter of attachment bolts | G |
38.1 mm
|
| Required locating (stabilizing) ring | ||
| Number of required locating rings |
1
|
| Initial grease fill, 20% |
4 259.232 g
|
|
| Initial grease fill, 40% |
7 012.538 g
|
|
| Oil level | h |
79.375 mm
|
