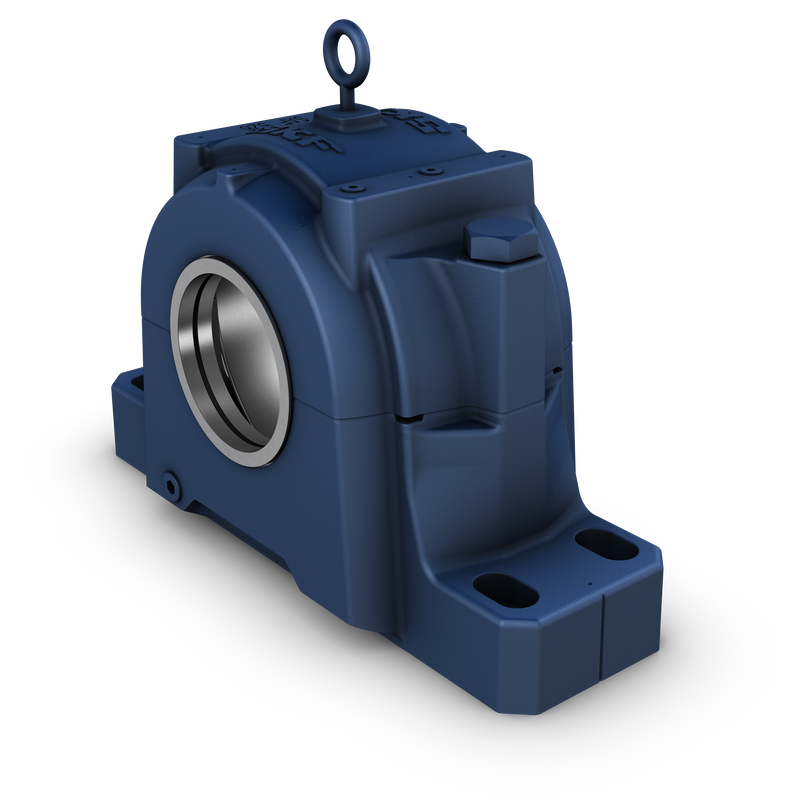

SAF split plummer (pillow) block housings have a two-piece, cast metal construction with inch dimensions. These housings have been developed to be the best choice for design, quality, robustness, and cost efficiency. SAF housings, when used with SKF bearings, seals and related components, provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment.
| da |
125.413 mm
|
Shaft diameter |
|---|
| Da |
250 mm
|
Diameter of bearing seat |
|---|---|---|
|
G7
|
Tolerance class of bearing seat diameter | |
| Ca |
77.8 mm
|
Width of bearing seat |
| H1 |
152.4 mm
|
Centre height |
| A1 |
149.225 mm
|
Foot width |
|---|---|---|
| A2 |
193.675 mm
|
Overall width |
| H |
305.594 mm
|
Overall height |
| H2 |
60.325 mm
|
Foot height |
| J |
min. 396.875 mm
|
Distance between attachment bolts |
| J |
max. 441.325 mm
|
Distance between attachment bolts |
| J1 |
85.725 mm
|
Distance between attachment bolts, axial |
| L |
511.175 mm
|
Overall length |
| N1 |
28.575 mm
|
Width of attachment bolt hole |
| R1 |
87.313 mm
|
Distance of drain plug from centre |
|---|---|---|
| R2 |
38.1 mm
|
Height of drain plug position |
| RG |
3/4-14 NPT
|
Thread of drain hole |
| PG |
1/4-18 NPT
|
Thread of grease fitting in cap |
| P60° |
249 kN
|
Safe load at 60° load angle |
|---|---|---|
| P90° |
149 kN
|
Safe load at 90° load angle |
| P120° |
94.3 kN
|
Safe load at 120° load angle |
| P150° |
85.9 kN
|
Safe load at 150° load angle |
| P180° |
103 kN
|
Safe load at 180° load angle |
| Pa |
67.1 kN
|
Safe load, axial |
| Housing material |
Cast iron
|
| Corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass housing |
52.2 kg
|
| Cap bolt |
1-8 UNC x 5-1/2
|
|
| Number of cap bolts |
2
|
|
| SAE grade of cap bolt |
5
|
|
| Recommended tightening torque for cap bolts |
399.966 N·m
|
|
| Recommended diameter for attachment bolts | G |
25.4 mm
|
| Eye bolt |
3/8-16 UNC
|
|
| Number of eyebolts |
1
|
