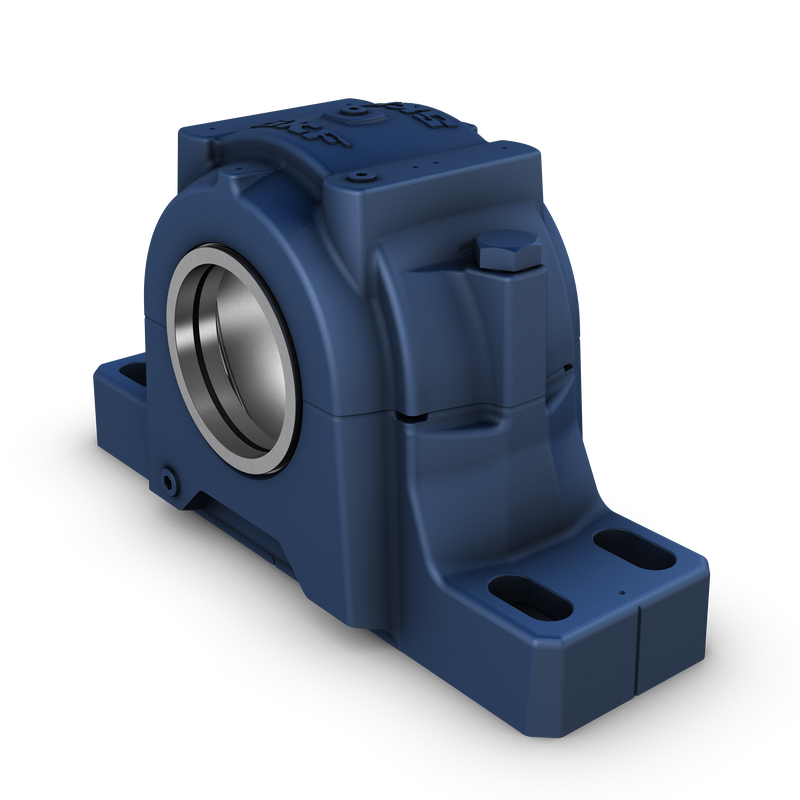

SAF split plummer (pillow) block housings have a two-piece, cast metal construction with inch dimensions. These housings have been developed to be the best choice for design, quality, robustness, and cost efficiency. SAF housings, when used with SKF bearings, seals and related components, provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment.
| da |
100.013 mm
|
Shaft diameter |
|---|
| Da |
200 mm
|
Diameter of bearing seat |
|---|---|---|
|
G7
|
Tolerance class of bearing seat diameter | |
| Ca |
62.789 mm
|
Width of bearing seat |
| H1 |
125.425 mm
|
Centre height |
| A1 |
120.65 mm
|
Foot width |
|---|---|---|
| A2 |
165.1 mm
|
Overall width |
| H |
239.316 mm
|
Overall height |
| H2 |
50.8 mm
|
Foot height |
| J |
min. 320.675 mm
|
Distance between attachment bolts |
| J |
max. 368.3 mm
|
Distance between attachment bolts |
| J1 |
69.85 mm
|
Distance between attachment bolts, axial |
| L |
419.1 mm
|
Overall length |
| N1 |
22.225 mm
|
Width of attachment bolt hole |
| R1 |
67.866 mm
|
Distance of drain plug from centre |
|---|---|---|
| R2 |
31.75 mm
|
Height of drain plug position |
| RG |
3/8-18 NPT
|
Thread of drain hole |
| PG |
1/4-18 NPT
|
Thread of grease fitting in cap |
| P60° |
149 kN
|
Safe load at 60° load angle |
|---|---|---|
| P90° |
89 kN
|
Safe load at 90° load angle |
| P120° |
55.6 kN
|
Safe load at 120° load angle |
| P150° |
50.7 kN
|
Safe load at 150° load angle |
| P180° |
60.9 kN
|
Safe load at 180° load angle |
| Pa |
39.6 kN
|
Safe load, axial |
| Housing material |
Cast iron
|
| Corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass housing |
24 kg
|
| Cap bolt |
3/4-10 UNC x 4
|
|
| Number of cap bolts |
2
|
|
| SAE grade of cap bolt |
5
|
|
| Recommended tightening torque for cap bolts |
203.373 N·m
|
|
| Recommended diameter for attachment bolts | G |
19.05 mm
|
