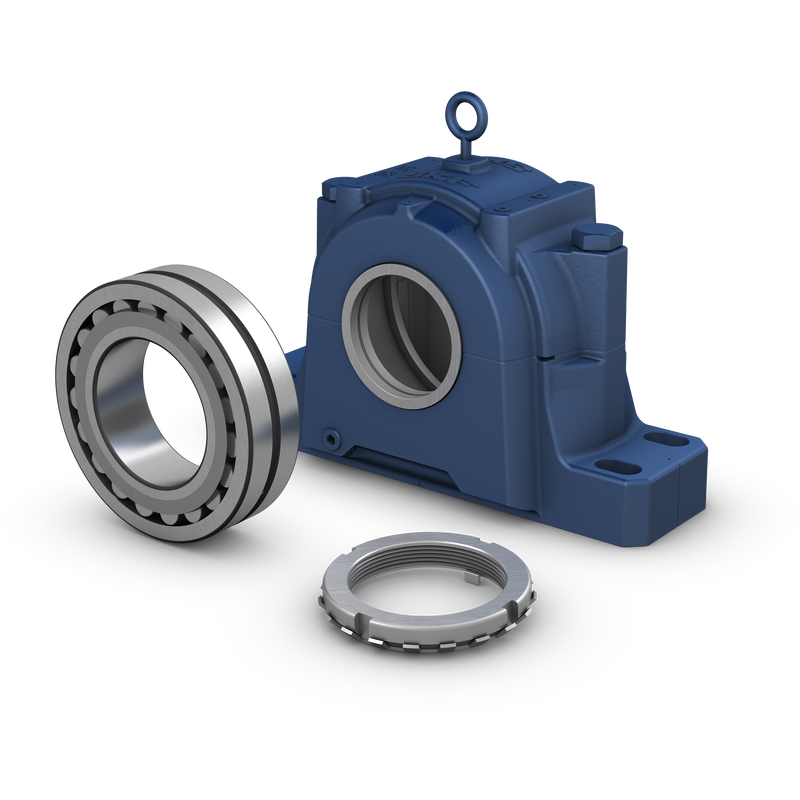

SAF and SAW split pillow blocks use a two-piece, cast metal housing with inch dimensions. With the included SKF bearings, seals, and related components, they provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment. These pillow blocks have been developed to be the best choice for design, quality, robustness, and cost efficiency.
| da |
140 mm
|
Shaft diameter |
|---|---|---|
| db |
158.75 mm
|
Shaft diameter |
| dc |
134.938 mm
|
Shaft diameter |
| Da |
250 mm
|
Diameter of bearing seat |
|
G7
|
Tolerance class of bearing seat | |
| Ca |
77.8 mm
|
Width of bearing seat |
| A1 |
149.225 mm
|
Housing foot width |
| A2 |
193.675 mm
|
Width |
| H |
305.594 mm
|
Height |
| H1 |
152.4 mm
|
Centre height of bearing seat |
| H2 |
60.325 mm
|
Foot height |
| J |
min. 441.325 mm
|
Distance between attachment bolts |
| J |
max. 396.875 mm
|
Distance between attachment bolts |
| J1 |
85.725 mm
|
Distance between attachment bolts, axial |
| L |
511.175 mm
|
Length |
| N1 |
28.575 mm
|
Width of attachment bolt hole |
| S |
4.763 mm
|
Offset of locating bearing |
| R1 |
87.313 mm
|
Distance of drain plug from centre |
|---|---|---|
| R2 |
38.1 mm
|
Height of drain plug position |
| RG |
3/4-14 NPT
|
Thread of drain hole |
| PG |
1/4-18 NPT
|
Thread for grease fitting in cap |
| Dynamic load rating | C |
743 kN
|
|---|---|---|
| Static load rating | C0 |
900 kN
|
| Fatigue load limit | Pu |
86.5 kN
|
| Reference speed |
2 400 r/min
|
|
| Limiting speed |
3 200 r/min
|
|
| Limiting value | e |
0.26
|
| Calculation factor | Y1 |
2.6
|
| Calculation factor | Y2 |
3.9
|
| Calculation factor | Y0 |
2.5
|
| P60 |
249 kN
|
Safe load at 60° load angle |
|---|---|---|
| P90 |
158 kN
|
Safe load at 90° load angle |
| P120 |
94.3 kN
|
Safe load at 120° load angle |
| P150 |
85.9 kN
|
Safe load at 150° load angle |
| P180 |
103 kN
|
Safe load at 180° load angle |
| Pa |
67.1 kN
|
Safe load, axial |
| Housing material |
Cast iron
|
| Paint, corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass |
67.6 kg
|
| Cap bolt |
1-8 UNC x 5-1/2
|
|
| Number of cap bolts |
2
|
|
| Recommended tightening torque for cap bolts |
399.966 N·m
|
|
| SAE grade of cap bolt |
5
|
|
| Eye bolt |
3/8-16 UNC
|
|
| Number of eye bolts |
1
|
|
| Recommended diameter of attachment bolts | G |
25.4 mm
|
| Required locating (stabilizing) ring | SR-28-0 | |
| Number of required locating rings |
1
|
| Oil level | h |
51.594 mm
|
|---|
