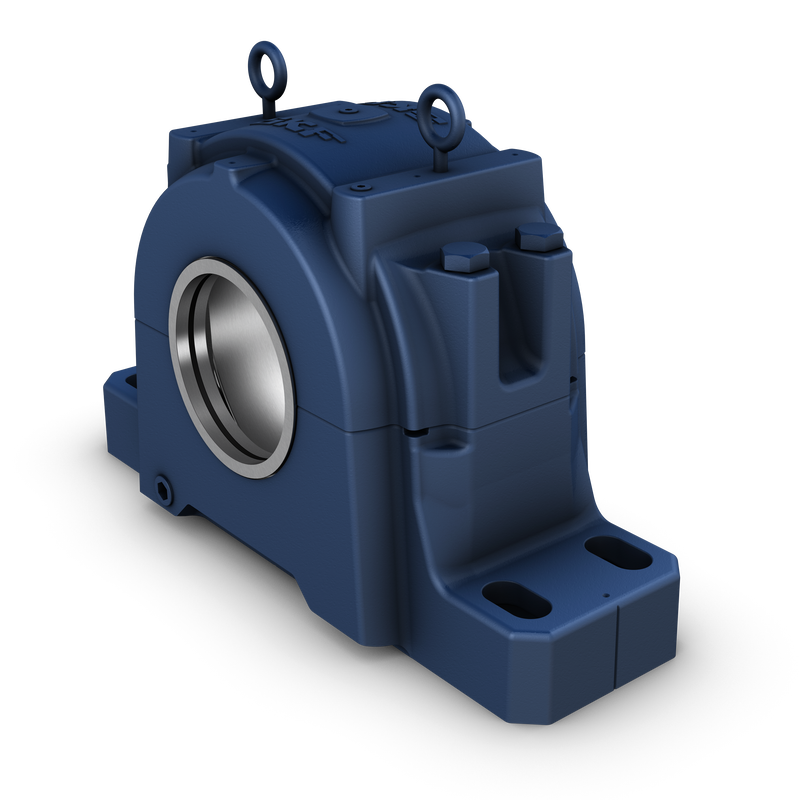

SAF split plummer (pillow) block housings have a two-piece, cast metal construction with inch dimensions. These housings have been developed to be the best choice for design, quality, robustness, and cost efficiency. SAF housings, when used with SKF bearings, seals and related components, provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment.
| da |
254 mm
|
Shaft diameter |
|---|
| Da |
420 mm
|
Diameter of bearing seat |
|---|---|---|
|
G7
|
Tolerance class of bearing seat diameter | |
| Ca |
147.803 mm
|
Width of bearing seat |
| H1 |
250.825 mm
|
Centre height |
| A1 |
228.6 mm
|
Foot width |
|---|---|---|
| A2 |
315.119 mm
|
Overall width |
| H |
495.3 mm
|
Overall height |
| H2 |
101.6 mm
|
Foot height |
| J |
min. 666.75 mm
|
Distance between attachment bolts |
| J |
max. 749.3 mm
|
Distance between attachment bolts |
| J1 |
139.7 mm
|
Distance between attachment bolts, axial |
| L |
869.95 mm
|
Overall length |
| N1 |
41.275 mm
|
Width of attachment bolt hole |
| R1 |
163.513 mm
|
Distance of drain plug from centre |
|---|---|---|
| R2 |
50.8 mm
|
Height of drain plug position |
| RG |
1-11.5 NPT
|
Thread of drain hole |
| PG |
1/4-18 NPT
|
Thread of grease fitting in cap |
| P60° |
449 kN
|
Safe load at 60° load angle |
|---|---|---|
| P90° |
271 kN
|
Safe load at 90° load angle |
| P120° |
169 kN
|
Safe load at 120° load angle |
| P150° |
151 kN
|
Safe load at 150° load angle |
| P180° |
185 kN
|
Safe load at 180° load angle |
| Pa |
120 kN
|
Safe load, axial |
| Housing material |
Cast iron
|
| Corrosion protection |
Paint – in accordance with ISO 12944-2, corrosivity category C2
|
| Mass housing |
251 kg
|
| Cap bolt |
1 1/2-6 UNC x 8-1/2
|
|
| Number of cap bolts |
4
|
|
| SAE grade of cap bolt |
5
|
|
| Recommended tightening torque for cap bolts |
1 016.863 N·m
|
|
| Recommended diameter for attachment bolts | G |
38.1 mm
|
| Eye bolt |
1/2-13 UNC
|
|
| Number of eyebolts |
2
|
