SAA 60 TXE-2LSRod end

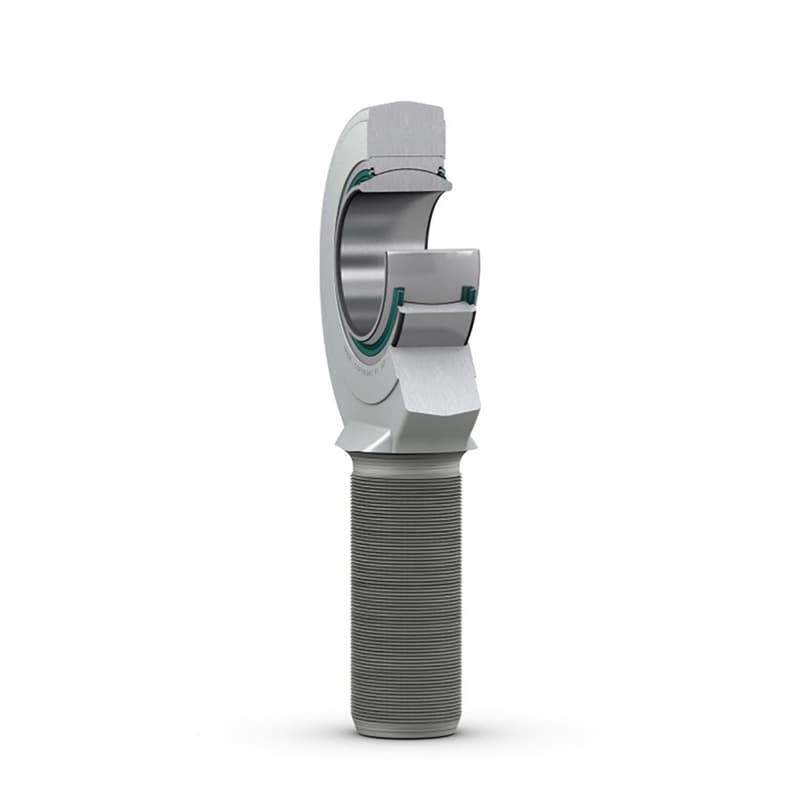

SKF rod ends consist of an eye-shaped head with an integral shank that forms a housing for a spherical plain bearing. These rod ends are used in applications such as hydraulic cylinders, steering links, tie rods, or anywhere a precision articulation joint is required. SKF provides both rod ends that require maintenance and rod ends that are maintenance-free.
| Maintenance |
Maintenance-free
|
| Sliding contact surface combination |
Steel/PTFE fabric
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Bearing steel
|
| Sealing |
Seal on both sides
|
| Sealing type |
Triple-lip
|
| Attachment feature, rod end shank |
Right-hand male thread
|
Dimensions
| d |
60 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 137 mm
|
Diameter head |
| B |
44 mm
|
Width inner ring |
| G |
M 52×3
|
Thread |
| C1 |
max. 39 mm
|
Width head |
| h |
210 mm
|
Height shank end face – centre rod end eye |
| α |
6 °
|
Angle of tilt |
| dk |
80 mm
|
Raceway diameter inner ring |
| l1 |
min. 115 mm
|
Length threat |
| l2 |
max. 281 mm
|
Length (height) housing |
| l7 |
min. 73 mm
|
Distance shank chamfer – centre rod end eye |
| r1 |
min. 1 mm
|
Chamfer dimension bore |
Calculation data
| Basic dynamic load rating | C |
695 kN
|
|---|---|---|
| Basic static load rating | C0 |
360 kN
|
| Specific dynamic load factor | K |
300 N/mm²
|
Mass
| Mass rod end |
5.7 kg
|
