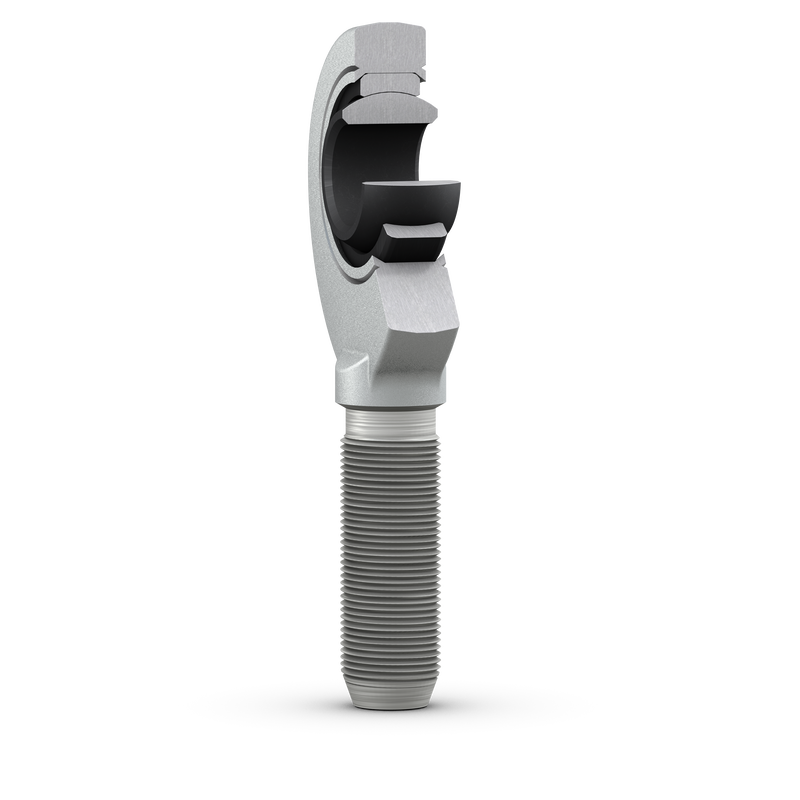

SA 8 ERod end, requires maintenance, male thread
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination. The bearing requires maintenance and can be relubricated only from the side. The male thread is available with a left- (prefix SAL) or right-hand thread.
| Maintenance |
Relubrication required
|
| Sliding contact surface combination |
Steel/steel, standard
|
| Material, inner ring |
Bearing steel
|
| Material, outer ring |
Bearing steel
|
| Sealing |
Without
|
| Attachment feature, rod end shank |
Right-hand male thread
|
Dimensions
| d |
8 mm
|
Bore diameter |
|---|---|---|
| d2 |
max. 25 mm
|
Diameter head |
| B |
8 mm
|
Width inner ring |
| G |
M 8
|
Thread |
| C1 |
max. 6.5 mm
|
Width head |
| h |
42 mm
|
Height shank end face – centre rod end eye |
| α |
15 °
|
Angle of tilt |
| dk |
13 mm
|
Raceway diameter inner ring |
| l1 |
min. 21 mm
|
Length threat |
| l2 |
max. 56 mm
|
Length (height) housing |
| l7 |
min. 11 mm
|
Distance shank chamfer – centre rod end eye |
| r1 |
min. 0.3 mm
|
Chamfer dimension bore |
Calculation data
| Basic dynamic load rating | C |
5.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
12.9 kN
|
| Specific dynamic load factor | K |
100 N/mm²
|
| Material constant | KM |
330
|
Mass
| Mass rod end |
0.029 kg
|
