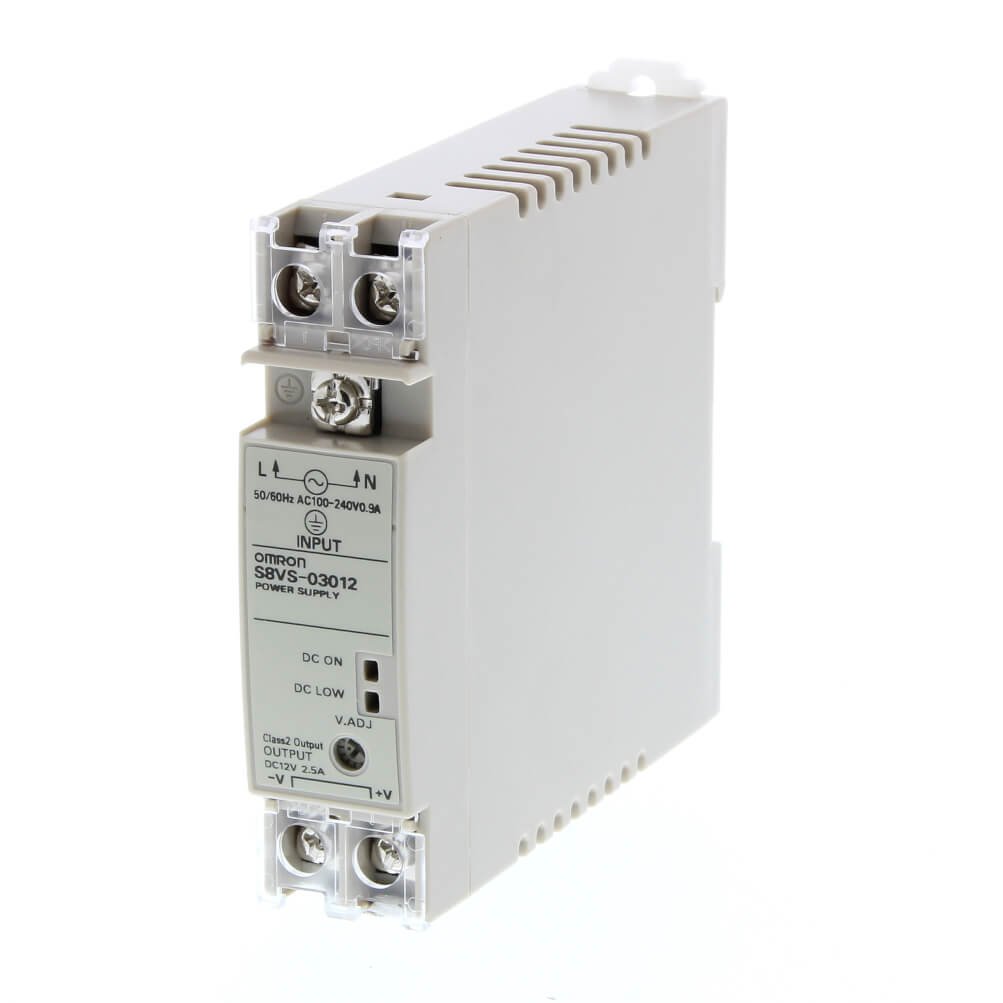

Power supply, plastic case, 22.5 mm wide DIN rail or direct panel mounting, 100/240 VAC supply, 30 W, 12 VDC, 2.5 A output
| Type | Book type |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 30 W |
| Efficiency | 80 % |
| Output voltage | 12 V |
| Rated output current | 2.5 A |
| Temperature range | 25-85 °C |
| Features | UL class 2 |
| Terminal | Screw |
| Communication port(s) | None |
| Alarm function | – |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Product Width (unpacked) | 22.5 mm |
| Product Height (unpacked) | 94.6 mm |
| Product Depth (unpacked) | 96.4 mm |
Datasheet
EN PDF
Power supply, 60 W, 100 to 240 VAC input, 24VDC 2.5A output, DIN rail mounting, digital display with running voltage and current, peak current, and maintenance monitor function
Power supply, 120 W, 100 to 240 VAC input, 24 VDC 5A output, DIN rail mounting, digital display with running voltage and current, peak current, and total run time function with settable alarm point
Power supply, 60 W, 100-240 VAC input, 24 VDC, 2.5 A output, DIN rail mounting, basic model
Power supply, 180W, 100-240 VAC input, 24 VDC 7.5A output, DIN rail mounting, basic model
