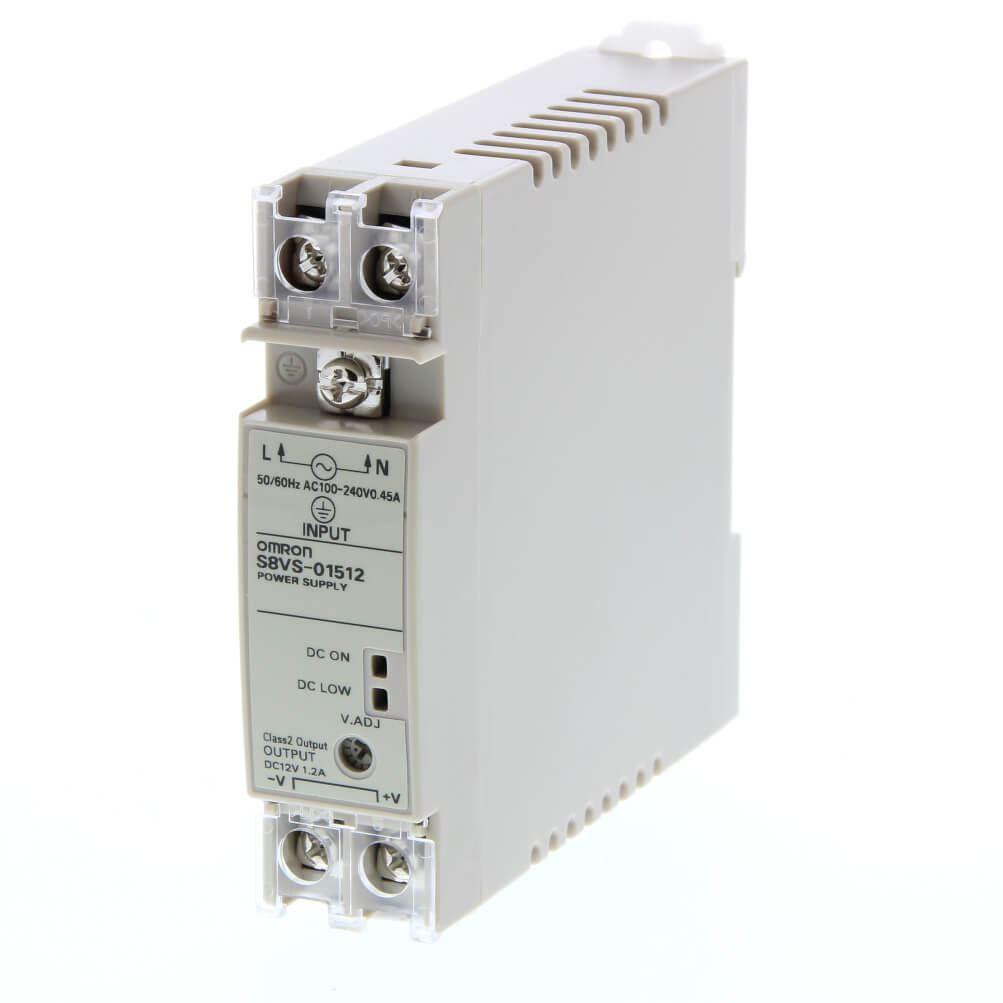

Power supply, plastic case, 22.5 mm wide DIN rail or direct panel mounting, 100/240 VAC supply, 15 W, 12 VDC, 1.2 A output
| Type | Book type |
| Mounting method | DIN rail |
| Phase | Single |
| Power output | 15 W |
| Efficiency | 78 % |
| Output voltage | 12 V |
| Rated output current | 1.2 A |
| Temperature range | 25-85 °C |
| Features | UL class 2 |
| Terminal | Screw |
| Communication port(s) | None |
| Alarm function | – |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 80-370 V |
| Product Width (unpacked) | 22.5 mm |
| Product Height (unpacked) | 94.6 mm |
| Product Depth (unpacked) | 96.4 mm |
Datasheet
EN PDF
