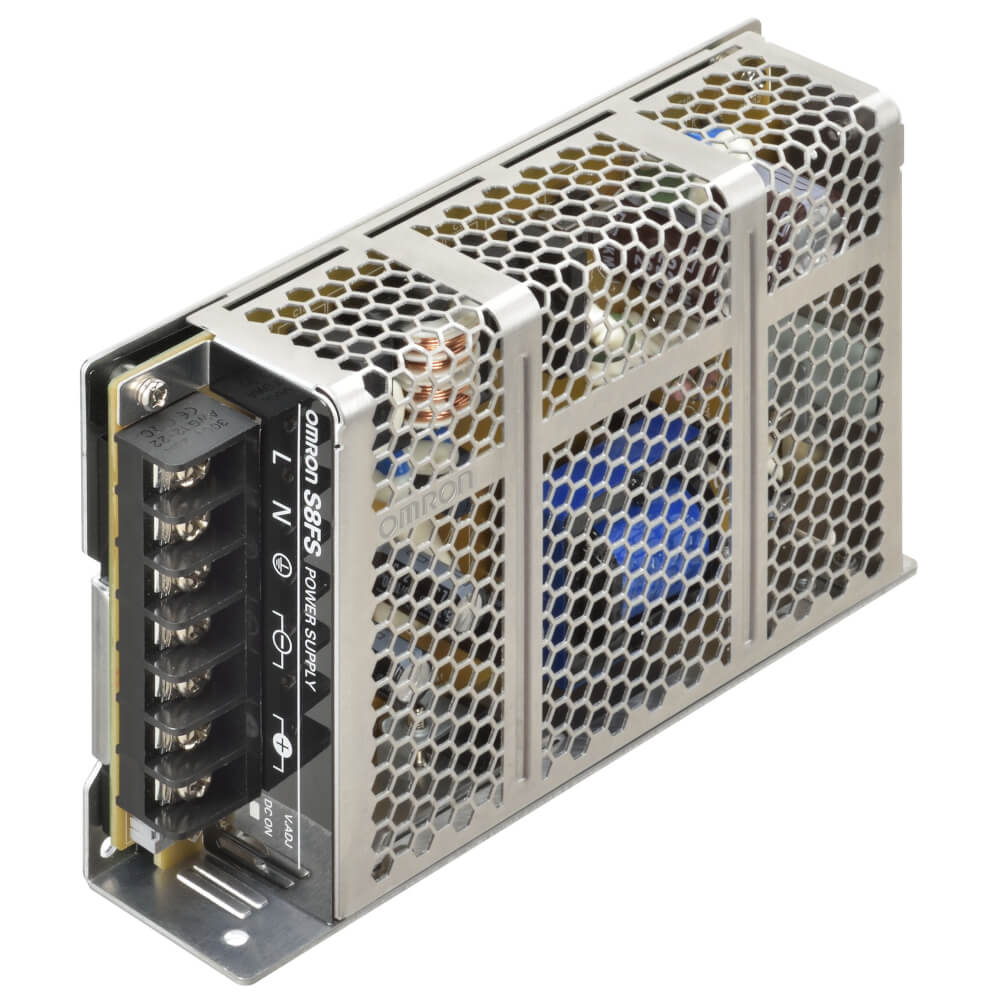

Power supply, 75 W, 100 to 240 VAC input, 12 VDC, 6.2 A output, Upper terminal
| Type | Metal frame |
| Mounting method | Direct mounting |
| Phase | Single |
| Power output | 75 W |
| Efficiency | 83 % |
| Output voltage | 12 V |
| Rated output current | 6.2 A |
| Temperature range | -20-60 °C |
| Features | Terminal block facing upward |
| Terminal | Screw |
| Communication port(s) | None |
| Alarm function | – |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 120-370 V |
| Product Width (unpacked) | 97 mm |
| Product Height (unpacked) | 38 mm |
| Product Depth (unpacked) | 159 mm |
 |
S82Y-FSC150DIN | Mounting bracket, DIN-rail, 75W, 100W, 150W |
|
