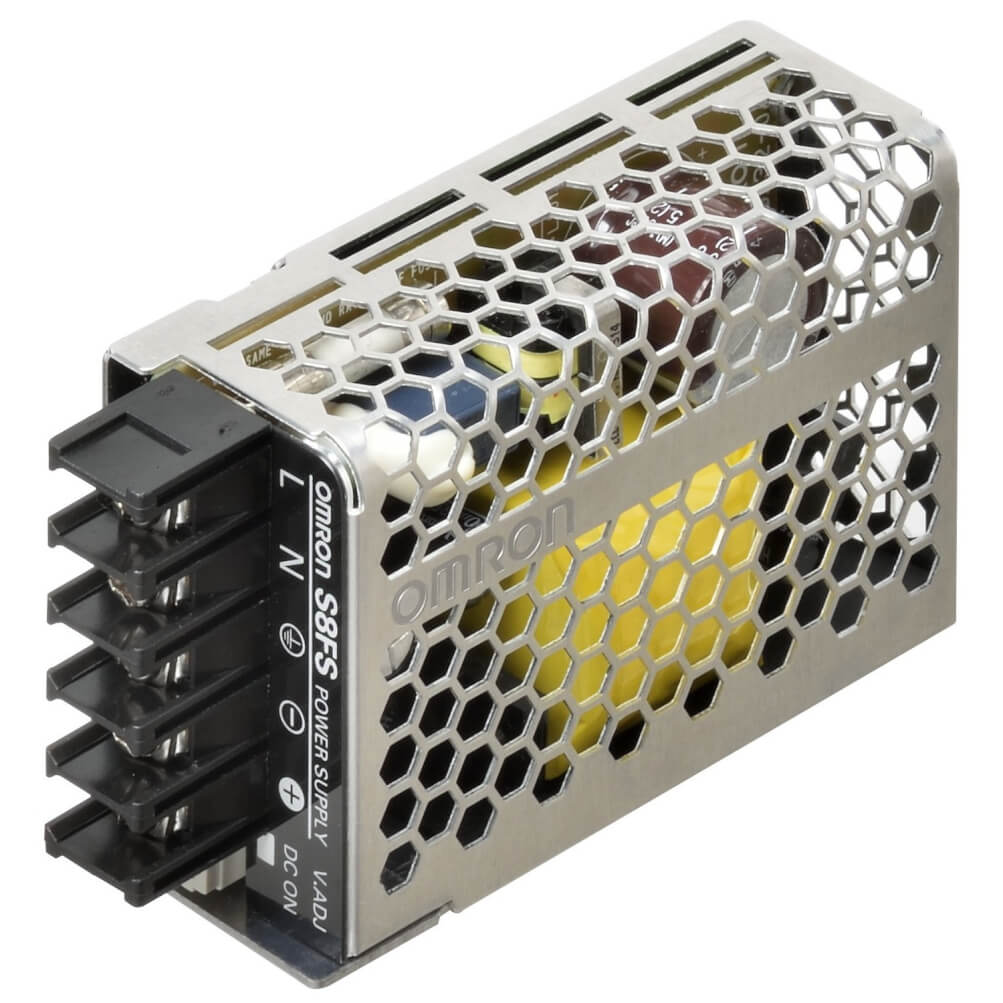

Power supply, 15 W, 100-240 VAC input, 5 VDC, 3 A output, Front terminal
| Type | Metal frame |
| Mounting method | Direct mounting |
| Phase | Single |
| Power output | 15 W |
| Efficiency | 82 % |
| Output voltage | 5 V |
| Rated output current | 3 A |
| Temperature range | -20-60 °C |
| Features | Terminal block facing forward |
| Terminal | Screw |
| Communication port(s) | None |
| Alarm function | – |
| Number of output branches | 1 |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Allowable supply voltage AC | 85-264 V |
| Allowable supply voltage DC | 120-370 V |
| Product Width (unpacked) | 51 mm |
| Product Height (unpacked) | 28 mm |
| Product Depth (unpacked) | 78 mm |
 |
S82Y-FSC015DIN | Mounting bracket, DIN-rail, 15W |
|
Datasheet
EN PDF
Power supply, 100 W, 100-240 VAC input, 24 VDC, 4.5 A output, Front terminal
Power supply, 200 W, 100 to 240 VAC input, 24 VDC, 8.8 A output, Upper terminal
Power supply, 50 W, 100-240 VAC input, 12 VDC, 4.2 A output, Upper terminal
Power supply, 200 W, 100 to 240 VAC input, 12 VDC, 17 A output, Upper terminal
