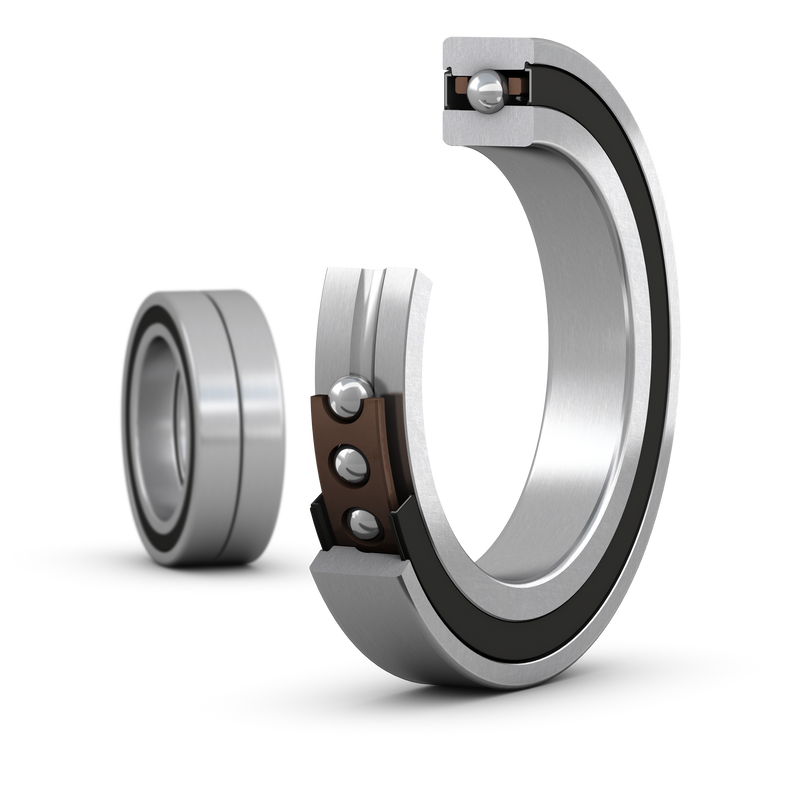

These matched sets of two super-precision, high-speed B design, single row angular contact ball bearings with seals are available in a variety of arrangements. Compared to the equivalent SKF E design high-speed bearings, these are suited for lighter loads.
| Universal matching bearing(s) |
Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
|
| d |
100 mm
|
Bore diameter |
|---|---|---|
| D |
140 mm
|
Outside diameter |
| B |
40 mm
|
Width |
| d1 |
114.92 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
113.16 mm
|
Shoulder diameter of inner ring (small side face) |
| D2 |
128.7 mm
|
Recess diameter of outer ring (large side face) |
| D4 |
130.5 mm
|
Recess diameter outer ring shoulder (small side face) |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension |
| da |
min. 106 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 114.2 mm
|
Diameter of shaft abutment |
| db |
min. 106 mm
|
Diameter of shaft abutment |
| db |
max. 112.5 mm
|
Diameter of shaft abutment |
| Da |
max. 134 mm
|
Diameter of housing abutment |
| Db |
max. 136.8 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of fillet |
| rb |
max. 0.6 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
33 200 N
|
|---|---|---|
| Basic static load rating | C0 |
42 500 N
|
| Fatigue load limit | Pu |
1 630 N
|
| Attainable speeds |
Contact SKF for the attainable speeds
|
|
| Contact angle | α |
25 °
|
| Ball diameter | Dw |
7.938 mm
|
| Number of rows | i |
2
|
| Number of balls (per bearing) | z |
37
|
| Preload class |
A
|
|
| Preload | G |
125 N
|
| Axial stiffness |
157 N/µm
|
| Correction factor dependent on bearing series and size | f |
1.11
|
|---|---|---|
| Correction factor dependent on contact angle | f1 |
0.99
|
| Correction factor, preload class A | f2A |
1
|
| Correction factor for hybrid bearings | fHC |
1
|
| Calculation factor | e |
0.68
|
|---|---|---|
| Axial load factor (single, tandem) | Y1 |
0
|
| Axial load factor (single, tandem) | Y2 |
0.87
|
| Axial load factor (single, tandem) | Y0 |
0.38
|
| Radial load factor (single, tandem) | X1 |
1
|
| Radial load factor (single, tandem) | X2 |
0.41
|
| Radial load factor (single, tandem) | X0 |
0.5
|
| Axial load factor (back-to-back, face-to-face) | Y1 |
0.92
|
| Axial load factor (back-to-back, face-to-face) | Y2 |
1.41
|
| Axial load factor (back-to-back, face-to-face) | Y0 |
0.76
|
| Radial load factor (back-to-back, face-to-face) | X1 |
1
|
| Radial load factor (back-to-back, face-to-face) | X2 |
0.67
|
| Radial load factor (back-to-back, face-to-face) | X0 |
1
|
| Mass |
1.76 kg
|
