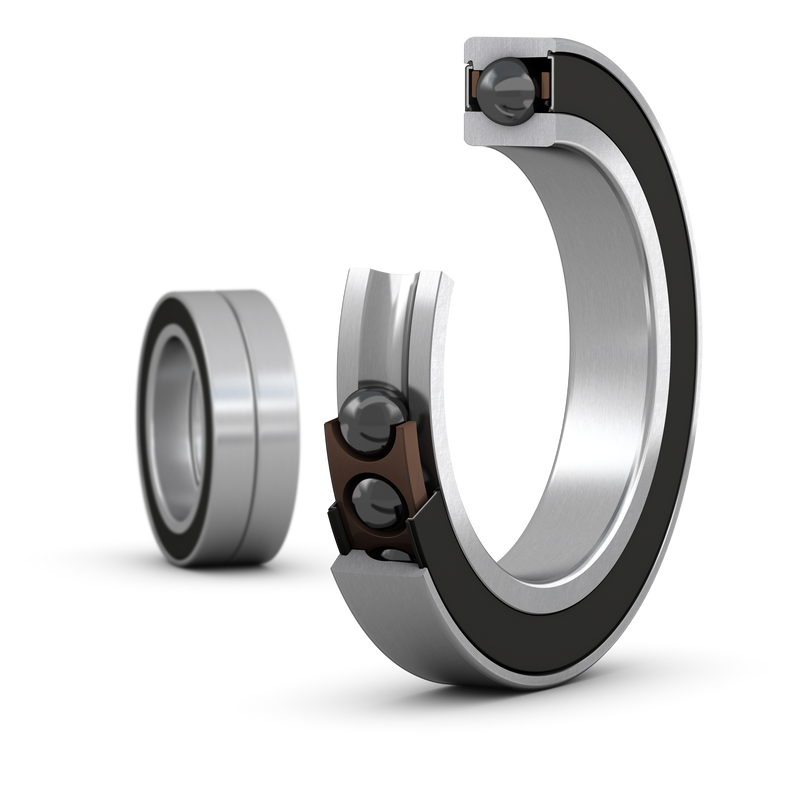

These matched sets of two super-precision, high-capacity, D design, single row angular contact ball bearings with seals are available in a variety of arrangements. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures.
| Universal matching bearing(s) |
Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
|
| d |
90 mm
|
Bore diameter |
|---|---|---|
| D |
125 mm
|
Outside diameter |
| B |
36 mm
|
Width |
| d1 |
100.8 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
100.8 mm
|
Shoulder diameter of inner ring (small side face) |
| D2 |
117.1 mm
|
Recess diameter of outer ring (large side face) |
| D4 |
120.45 mm
|
Recess diameter outer ring shoulder (small side face) |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension |
| da |
min. 96 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 100.2 mm
|
Diameter of shaft abutment |
| db |
min. 96 mm
|
Diameter of shaft abutment |
| db |
max. 100.2 mm
|
Diameter of shaft abutment |
| Da |
max. 119 mm
|
Diameter of housing abutment |
| Db |
max. 121 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of fillet |
| rb |
max. 0.6 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
76 100 N
|
|---|---|---|
| Basic static load rating | C0 |
102 000 N
|
| Fatigue load limit | Pu |
3 050 N
|
| Attainable speeds |
Contact SKF for the attainable speeds
|
|
| Contact angle | α |
15 °
|
| Ball diameter | Dw |
11.112 mm
|
| Number of rows | i |
2
|
| Number of balls (per bearing) | z |
26
|
| Preload class |
A
|
|
| Preload | G |
180 N
|
| Axial stiffness |
104 N/µm
|
| Correction factor dependent on bearing series and size | f |
1.23
|
|---|---|---|
| Correction factor dependent on contact angle | f1 |
1
|
| Correction factor, preload class A | f2A |
1
|
| Correction factor for hybrid bearings | fHC |
1.04
|
| Calculation factor for equivalent loads | f0 |
16.3
|
|---|---|---|
| Additional factors for equivalent loads |
Refer to Notes 1 and 2 below
|
| Mass |
0.96 kg
|
