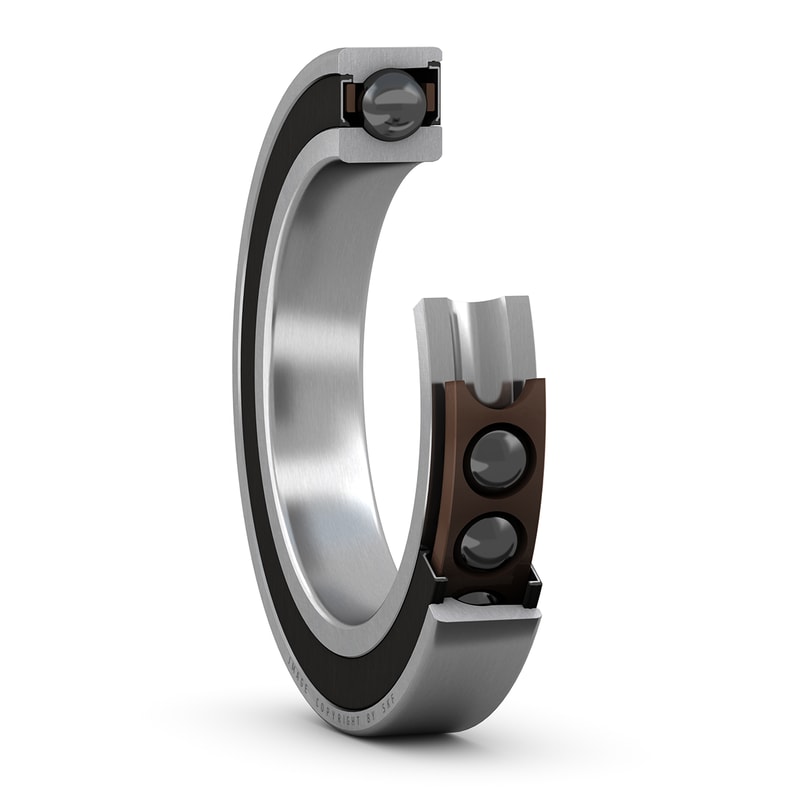

These sets of four matched super-precision angular contact ball bearings are available as universally matchable bearings or in preconfigured arrangements. Sets of four bearings arranged in tandem need to be mounted against a single bearing, or a set of bearings in tandem, to achieve the desired preload. All the other arrangements are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.
| Universal matching bearing(s) |
No
|
| d |
80 mm
|
Bore diameter |
|---|---|---|
| D |
110 mm
|
Outside diameter |
| B |
64 mm
|
Width |
| d1 |
89.2 mm
|
Shoulder diameter of inner ring (large side face) |
| D4 |
106.34 mm
|
Recess diameter outer ring shoulder (small side face) |
| r1,2 |
min. 1 mm
|
Chamfer dimension |
| r3,4 |
min. 0.3 mm
|
Chamfer dimension |
| da |
min. 84.6 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 88.6 mm
|
Diameter of shaft abutment |
| Db |
max. 108 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of fillet |
| rb |
max. 0.3 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
95 600 N
|
|---|---|---|
| Basic static load rating | C0 |
156 000 N
|
| Fatigue load limit | Pu |
4 800 N
|
| Attainable speeds |
Contact SKF for the attainable speeds
|
|
| Contact angle | α |
15 °
|
| Ball diameter | Dw |
9.525 mm
|
| Number of rows | i |
4
|
| Number of balls (per bearing) | z |
27
|
| Preload class |
C
|
|
| Preload | G |
1 120 N
|
| Axial stiffness |
370 N/µm
|
| Correction factor dependent on bearing series and size | f |
1.24
|
|---|---|---|
| Correction factor dependent on contact angle | f1 |
1
|
| Correction factor, preload class C | f2C |
1.12
|
| Correction factor for hybrid bearings | fHC |
1.04
|
| Mass |
1.28 kg
|
