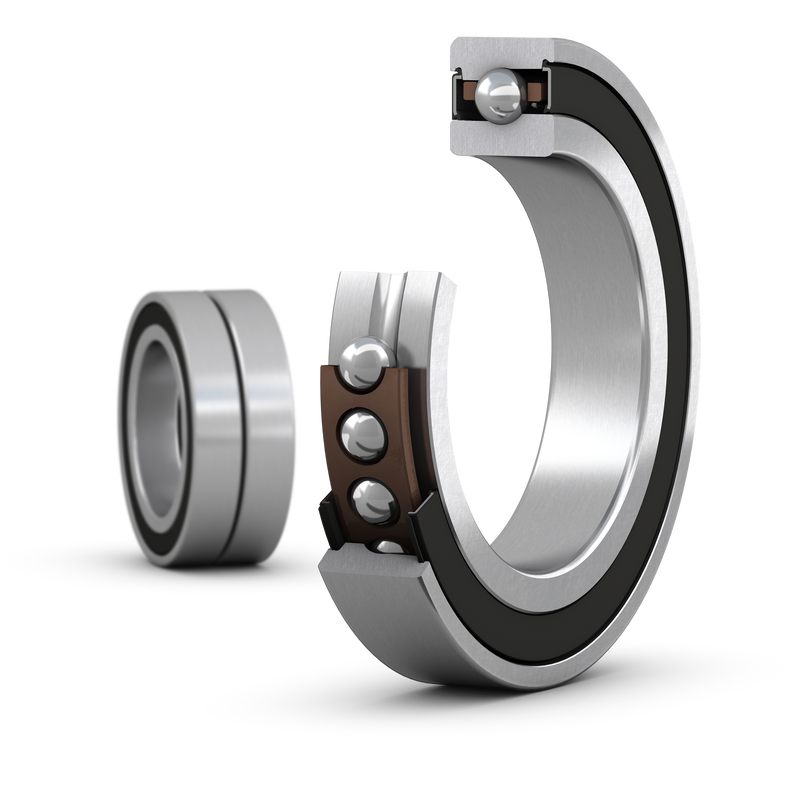

These matched sets of two super-precision, high-speed, E design, single row angular contact ball bearings with seals are available in a variety of arrangements. Compared to the equivalent SKF B design high-speed bearings, these have a slightly higher speed capability and can accommodate heavier loads.
| Universal matching bearing(s) |
No
|
| d |
60 mm
|
Bore diameter |
|---|---|---|
| D |
95 mm
|
Outside diameter |
| B |
36 mm
|
Width |
| d2 |
70.6 mm
|
Shoulder diameter of inner ring (small side face) |
| D2 |
85.4 mm
|
Recess diameter of outer ring (large side face) |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension |
| Diameter of shaft abutment | db |
min. 66 mm
|
|---|---|---|
| Diameter of shaft abutment | db |
max. 70 mm
|
| Diameter of housing abutment | Da |
max. 89 mm
|
| Radius of fillet | ra |
max. 1 mm
|
| Radius of fillet | rb |
max. 0.6 mm
|
| Basic dynamic load rating | C |
27 600 N
|
|---|---|---|
| Basic static load rating | C0 |
25 500 N
|
| Fatigue load limit | Pu |
1 080 N
|
| Attainable speeds |
Contact SKF for the attainable speeds
|
|
| Contact angle | α |
15 °
|
| Ball diameter | Dw |
7.938 mm
|
| Number of rows | i |
2
|
| Number of balls (per bearing) | z |
25
|
| Preload class |
A
|
|
| Preload | G |
92 N
|
| Axial stiffness |
48 N/µm
|
| Correction factor dependent on bearing series and size | f |
1.08
|
|---|---|---|
| Correction factor dependent on contact angle | f1 |
1
|
| Correction factor, preload class A | f2A |
1
|
| Correction factor for hybrid bearings | fHC |
1
|
| Calculation factor for equivalent loads | f0 |
8.5
|
|---|---|---|
| Additional factors for equivalent loads |
Refer to Notes 1 and 2 below
|
| Mass |
0.86 kg
|
