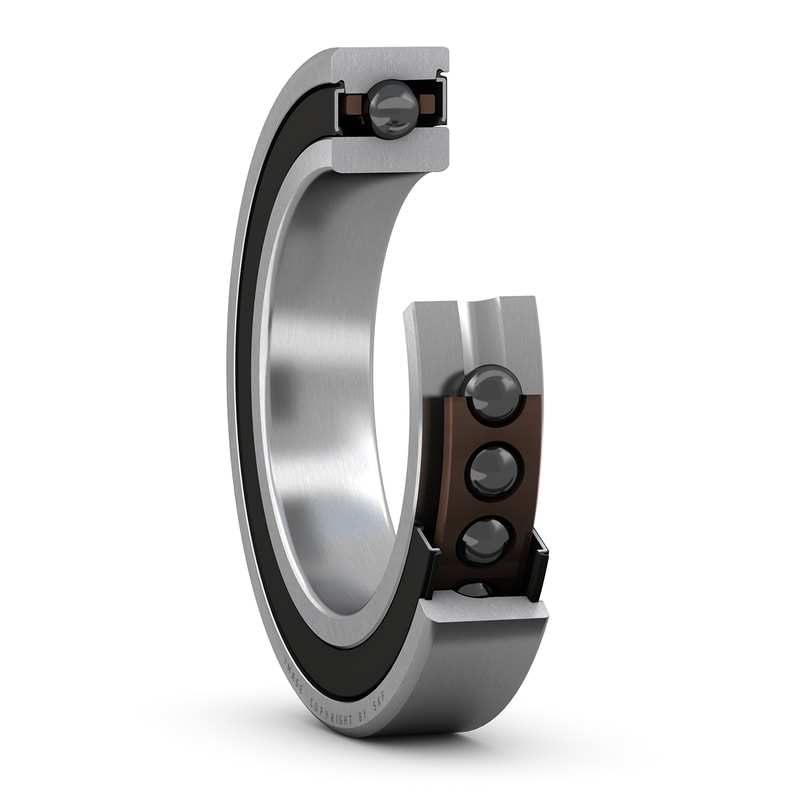

These super-precision, high-speed, E design, single row angular contact ball bearings, with non-contact seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.
| Universal matching bearing(s) |
Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
|
| d |
40 mm
|
Bore diameter |
|---|---|---|
| D |
68 mm
|
Outside diameter |
| d1 |
49.7 mm
|
Shoulder diameter of inner ring (large side face) |
| d2 |
47.6 mm
|
Shoulder diameter of inner ring (small side face) |
| D2 |
60.85 mm
|
Recess diameter of outer ring (large side face) |
| r1,2 |
min. 1 mm
|
Chamfer dimension |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension |
| Attainable speeds |
Contact SKF for the attainable speeds
|
|
| Ball diameter | Dw |
7.144 mm
|
| Additional factors for equivalent loads |
Refer to Notes 1 and 2 below
|
