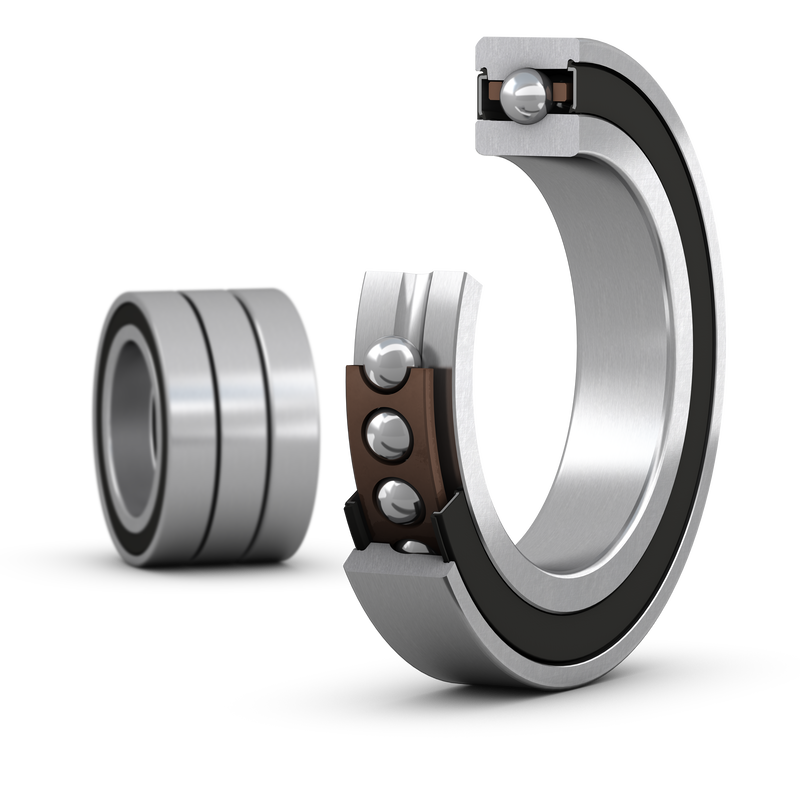

These sets of three matched super-precision angular contact ball bearings are available as universally matchable bearings or as preconfigured arrangements. Sets arranged in back-to-back and tandem, or face-to-face and tandem, are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. Sets of three bearings paired in tandem need to be mounted against a single bearing, or another set of bearings in tandem, to achieve the desired preload. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.
| Universal matching bearing(s) |
No
|
| d |
15 mm
|
Bore diameter |
|---|---|---|
| D |
32 mm
|
Outside diameter |
| B |
27 mm
|
Width |
| d2 |
19.5 mm
|
Shoulder diameter of inner ring (small side face) |
| D2 |
28.8 mm
|
Recess diameter of outer ring (large side face) |
| r1,2 |
min. 0.3 mm
|
Chamfer dimension |
| r3,4 |
min. 0.15 mm
|
Chamfer dimension |
| db |
min. 17 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
max. 19.1 mm
|
Diameter of shaft abutment |
| Da |
max. 30 mm
|
Diameter of housing abutment |
| ra |
max. 0.3 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
9 230 N
|
|---|---|---|
| Basic static load rating | C0 |
5 500 N
|
| Fatigue load limit | Pu |
232 N
|
| Attainable speeds |
Contact SKF for the attainable speeds
|
|
| Contact angle | α |
25 °
|
| Ball diameter | Dw |
4.762 mm
|
| Number of rows | i |
3
|
| Number of balls (per bearing) | z |
12
|
| Preload class |
A
|
|
| Preload | G |
51.3 N
|
| Axial stiffness |
58 N/µm
|
| Correction factor dependent on bearing series and size | f |
1.03
|
|---|---|---|
| Correction factor dependent on contact angle | f1 |
0.99
|
| Correction factor, preload class A | f2A |
1
|
| Correction factor for hybrid bearings | fHC |
1
|
| Mass |
0.087 kg
|
