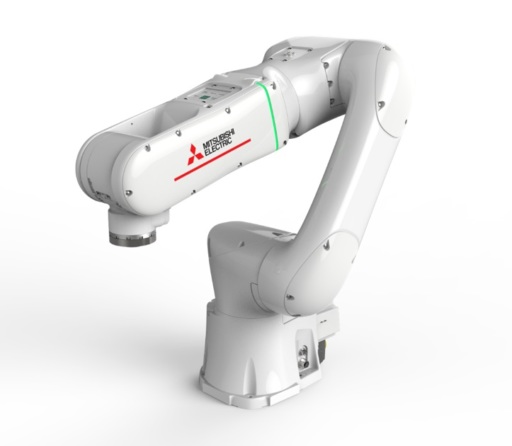

| Series | ASSISTA |
|---|---|
| Type | COLLABORATIVE |
| Payload (kg) | 5 |
| Installation Method | FLOOR, CEILING |
| Speed (mm/s) | 1000 |
| Repeatability (mm) | 0,03 |
| Max. Reach Radius (mm) | 910 |
| Operating Range J1 (deg) | 480 |
| Operating Range J2 (deg) | 296 |
| Operating Range J3 (deg) | 300 |
| Operating Range J4 (deg) | 400 |
| Operating Range J5 (deg) | 240 |
| Operating Range J6 (deg) | 400 |
| Environment specification | STANDARD/FOOD |
| Controller Type | CR800 |
| Protection Class | IP54 |
| Power Supply 1 Phase (VAC) | 200-230 |
| Width (mm) | 318 |
|---|---|
| Height (mm) | 734 |
| Depth (mm) | 899 |
| Weight (kg) | 32 |
| CE | COMPLIANT |
|---|---|
| UKCA | COMPLIANT |
| Cardboard (g) | 8000 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 30 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| Dangerous Goods Regulations | 9 |
|---|---|
| WEEE | B2B |
