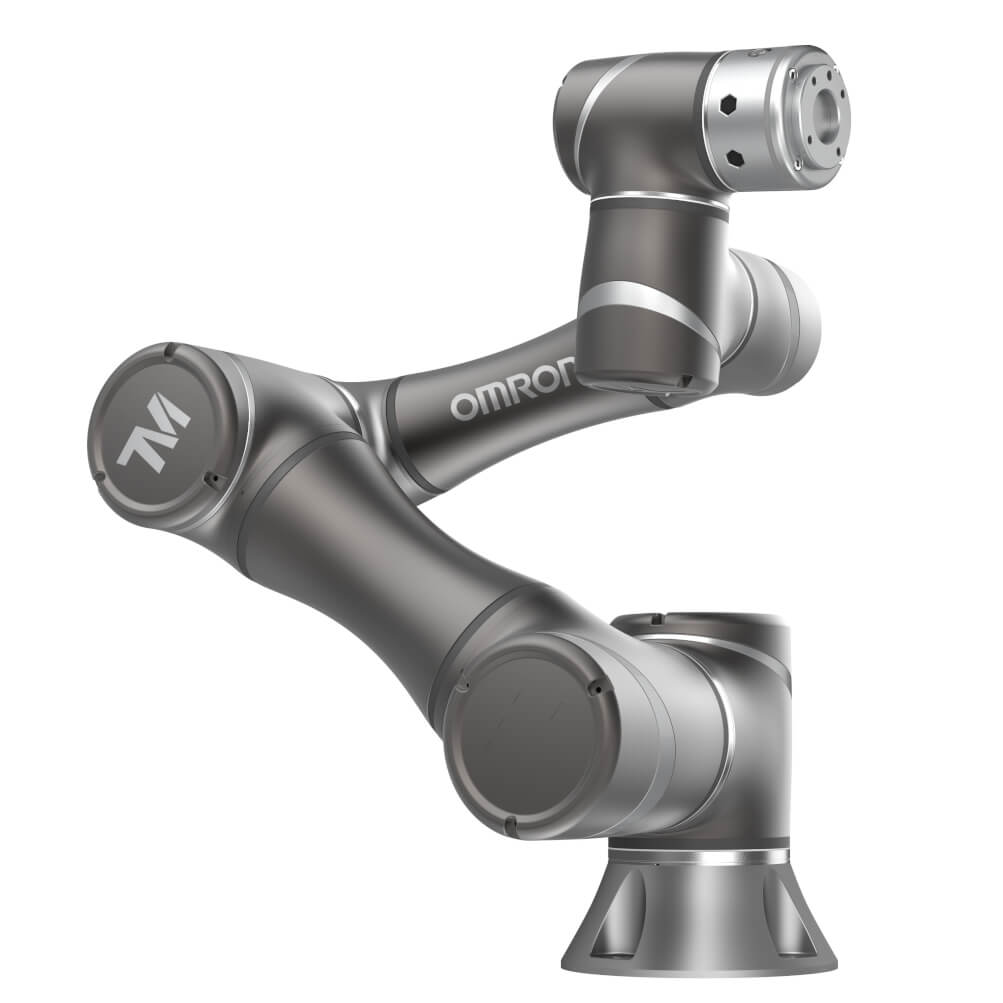

Bundle, Cobot, TM5X-700 (model without camera), HW3.2, PROFINET & EtherNet/IP
| Payload | 6 kg |
| Reach | 700 mm |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, MODBUS/TCP, PROFINET Slave, Serial RS-232C |
| Speed (typical) | 1.1 m/s |
| Maximum speed | 4 m/s |
| Repeatability | 0.05 mm |
| Power supply type | AC |
| Vision | ❌ |
| SEMI S2 certified | ❌ |
| Food grade grease | ❌ |
| Degree of protection (IP) | IP54 |
| SIL according to IEC 61508 | 2 |
| Performance level according to EN ISO 13849-1 | Level d |
| Cable length | 3 m |
| Number of joints | 6 |
| Suitable for pedestal/floor mounting | ✔️ |
| Suitable for ceiling mounting | ✔️ |
| Suitable for wall mounting | ✔️ |
 |
RT6-A000000 | Accessory, TM, ROBOT STICK STAND |
|
 |
RT6-A000002 | Accessory, TM, Kit, Calibration Set with Additional Pin |
|
 |
RT6-A000008 | Accessory, TM, TM LAND MARK |
|
 |
RT6-A000010 | Accessory, TM, MOBILE WORKSTATION(MWS) |
|
 |
RT6-A000012 | Accessory, TM, Kit, SSD with Cable |
|
 |
RT6-A000021 | Accessory, OMRON LAND MARK |
|
 |
RT6-S100000 | License, Software, TM Identify & Measure |
|
 |
RT6-S100002 | License, Software, TM External Vision |
|
 |
RT6-S100003 | License, Software, TM OCR |
|
 |
RT6-S100005 | License, Software, TMFlow Editor – Offline AOI |
|
 |
RT6-S200001 | License, TMFlow Editor |
|
| ROBOT 6MTH WRTY EXT LB COBOT | After Sales Robotic Services – 6 Months Warranty Extension Package for Labor Collaborative Robot (Labor and Travelling costs included, Warranty Extension package requires Basic and/or Registered warranty) |
|
| ROBOT 6MTH WRTY EXT SP COBOT | After Sales Robotic Services – 6 Months Warranty Extension Package for Spare Parts Collaborative Robot (Warranty extension package requires Basic and/or Registered warranty) |
|
Datasheet
EN PDF
