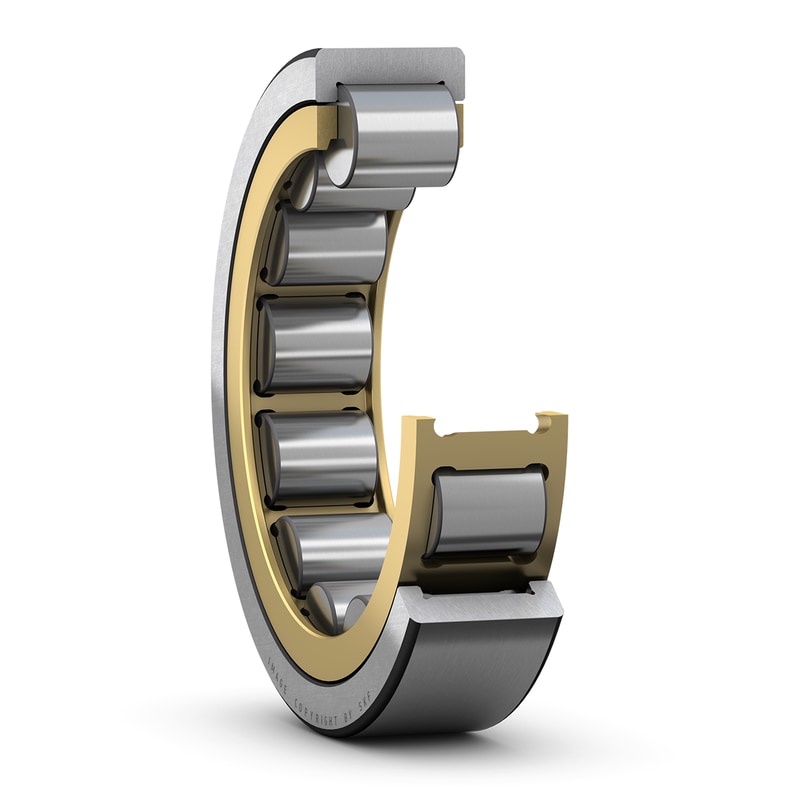

Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.
| SKF performance class |
SKF Explorer
|
| Fw |
121.5 mm
|
Diameter under rollers |
|---|---|---|
| D |
200 mm
|
Outside diameter |
| C |
67 mm
|
Width |
| D1 |
≈ 169.1 mm
|
Shoulder diameter outer ring |
| r1,2 |
min. 3 mm
|
Corner radius |
| da |
max. 132 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 185 mm
|
Abutment diameter housing |
| ra |
max. 2.5 mm
|
Fillet radius |
| Basic dynamic load rating | C |
530 kN
|
|---|---|---|
| Basic static load rating | C0 |
585 kN
|
| Fatigue load limit | Pu |
69.5 kN
|
| Reference speed |
3 600 r/min
|
|
| Limiting speed |
6 300 r/min
|
|
| Calculation factor | kr |
0.25
|
| Limiting value | e |
0.3
|
| Calculation factor | Y |
0.4
|
| Mass bearing |
8.09 kg
|
