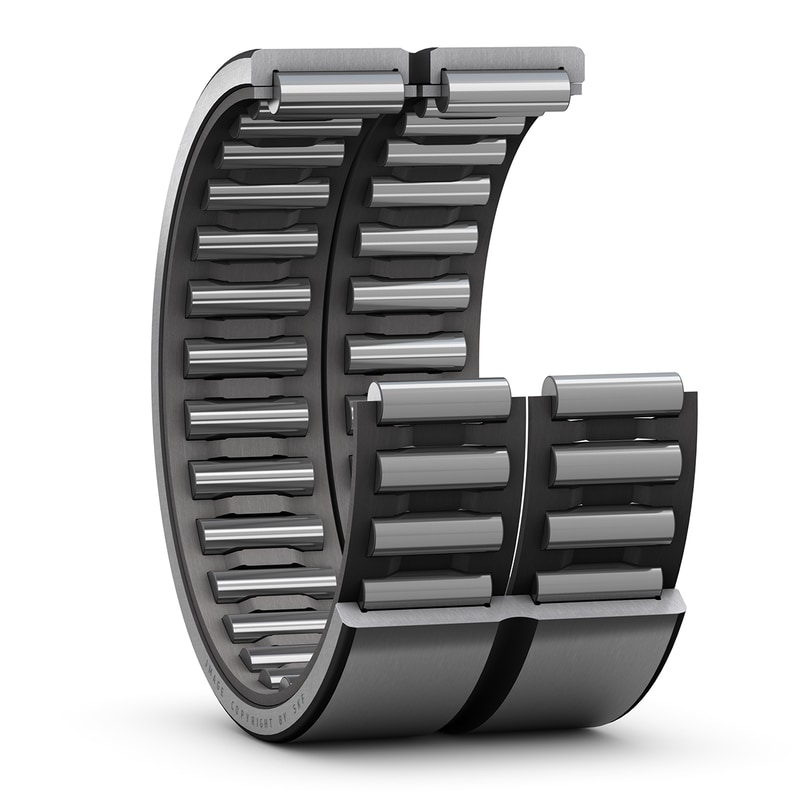

Double row needle roller bearings without an inner ring consist of an outer ring with two needle roller and cage assemblies. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes flanges to guide the roller and cage assemblies and has features to facilitate relubrication. The roller and cage assemblies and the outer ring form a non-separable unit.
| Fw |
105 mm
|
Diameter under rollers |
|---|---|---|
| D |
125 mm
|
Outside diameter |
| C |
63 mm
|
Width |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension outer ring |
| Da |
max. 118.5 mm
|
Abutment diameter housing (with flanges) |
|---|---|---|
| ra |
max. 1 mm
|
Fillet radius |
| Basic dynamic load rating | C |
172 kN
|
|---|---|---|
| Basic static load rating | C0 |
450 kN
|
| Fatigue load limit | Pu |
55 kN
|
| Reference speed |
3 800 r/min
|
|
| Limiting speed |
4 300 r/min
|
| Mass bearing |
1.33 kg
|
|
105x125x13 HMS4 R
|
Radial shaft seal |
