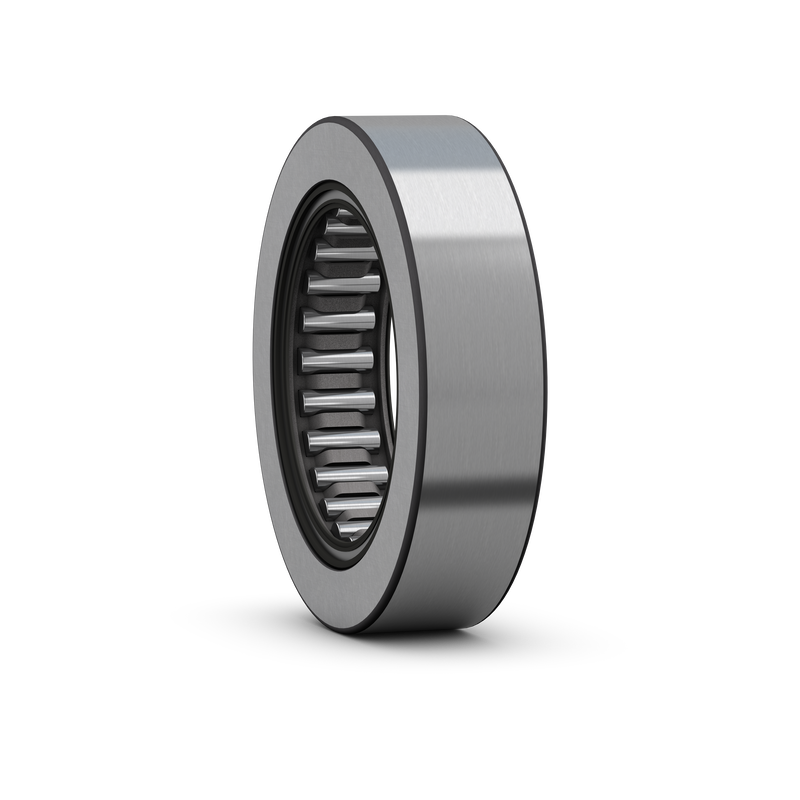

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing without an inner ring, intended for applications where hardened and ground raceways can be provided on the pin or shaft. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount.
| D |
35 mm
|
Outside diameter |
|---|---|---|
| Fw |
20 mm
|
Diameter under rollers |
| C |
13.8 mm
|
Width |
| D1 |
26 mm
|
Recess diameter outer ring shoulder |
| r1,2 |
min. 0.6 mm
|
Chamfer dimension outer ring |
| Basic dynamic load rating | C |
7.48 kN
|
|---|---|---|
| Basic static load rating | C0 |
9.3 kN
|
| Fatigue load limit | Pu |
1.12 kN
|
| Maximum dynamic radial load | Fr |
max. 9.5 kN
|
| Maximum static radial load | F0r |
max. 13.7 kN
|
| Limiting speed |
5 000 r/min
|
| Mass support roller |
0.06 kg
|
