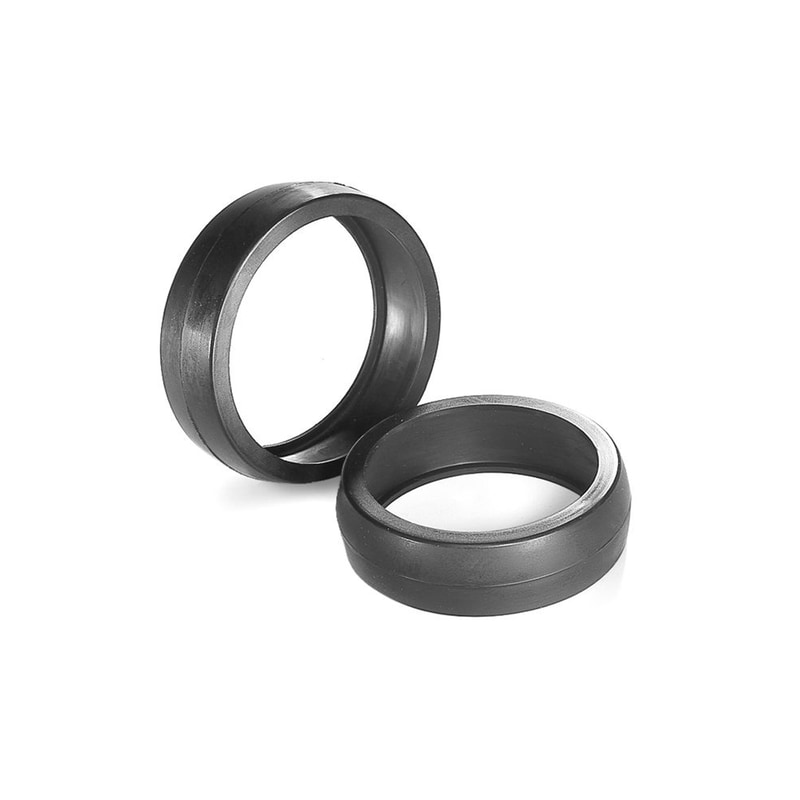

Rubber seating rings in the RIS 2 series are primarily intended to cushion insert bearings in pressed steel pillow (plummer) block housings. Located between the bearing outer ring and housing bore, they dampen vibration and noise and enable the bearings to be displaced slightly in their housings and to accommodate minor shaft expansion or misalignment.
| Bearing outside diameter | D |
2.441 in
|
|---|
| B |
0.709 in
|
Inner width rubber seating ring |
|---|---|---|
| C |
0.846 in
|
Outer width rubber seating ring |
| d1 |
2.15 in
|
Inner diameter rubber seating ring |
| d2 |
2.433 in
|
Inner diameter rubber seating ring |
| D1 |
2.846 in
|
Outside diameter rubber seating ring |
| r |
min. 0.039 in
|
Chamfer radius rubber seating ring |
| Mass rubber seating ring |
0.066 lb
|
