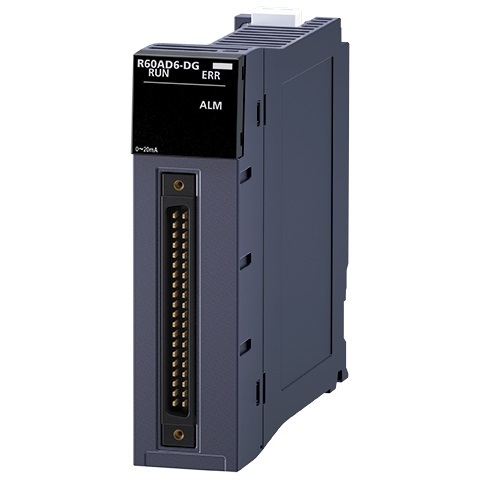

| Series | MELSEC IQ-R SERIES |
|---|---|
| Type | CHANNEL ISOLATED ANALOG INPUT |
| Power Supply (V) | 24 |
| Current Type | DC |
| Occupied I/O Points on PLC | 16 |
| Integrated Analogue Inputs | 6 |
| Input Current Range (mA) | 0-20; 4-20 |
| Wiring | CONNECTOR |
| Int. Current Consumption (A) | 0,36 |
| Width (mm) | 27,8 |
|---|---|
| Height (mm) | 106 |
| Depth (mm) | 110 |
| Weight (kg) | 0,2 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Cardboard (g) | 45 |
|---|---|
| Other paper (g) | 26 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 3 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| Dangerous Goods Regulations | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
