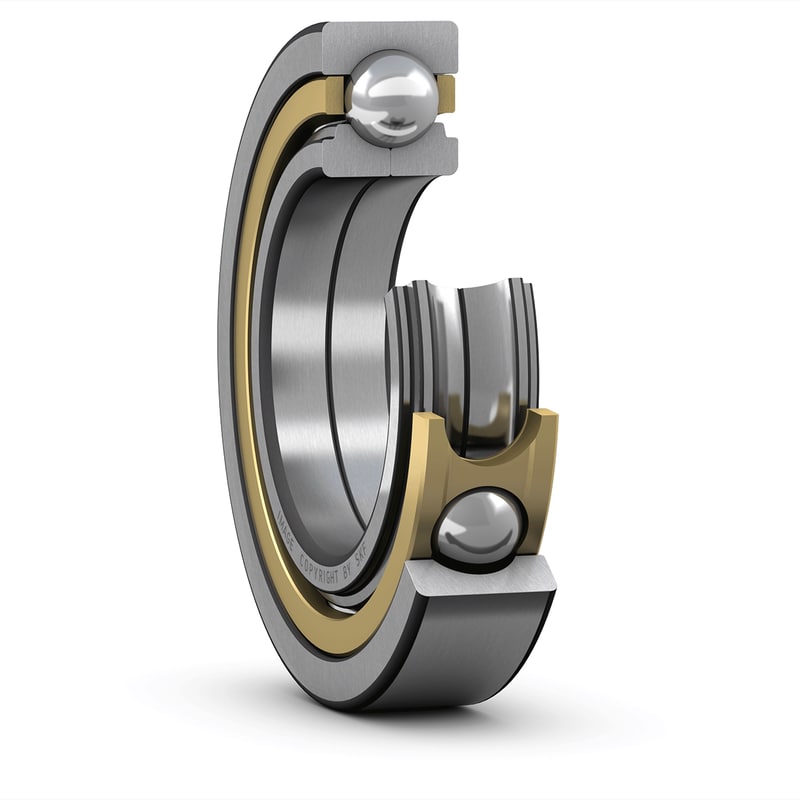

Four-point contact ball bearings can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves.
| d |
340 mm
|
Bore diameter |
|---|---|---|
| D |
620 mm
|
Outside diameter |
| B |
118 mm
|
Width |
| d1 |
≈ 447 mm
|
Shoulder diameter inner ring |
| D1 |
≈ 513 mm
|
Shoulder diameter outer ring/ inner diameter housing washer |
| a |
480 mm
|
Distance pressure point(s) |
| r1,2 |
min. 6 mm
|
Chamfer dimension inner ring |
| da |
min. 368 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 592 mm
|
Abutment diameter housing |
| ra |
max. 5 mm
|
Fillet radius |
| Basic dynamic load rating | C |
1 060 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 450 kN
|
| Fatigue load limit | Pu |
47.5 kN
|
| Limiting speed |
1 600 r/min
|
|
| Calculation factor | A |
35
|
| Limiting value | e |
1.34
|
| Calculation factor | X |
0.54
|
| Calculation factor | Y0 |
0.44
|
| Calculation factor | Y1 |
0.47
|
| Calculation factor | Y2 |
0.81
|
| Mass bearing |
165 kg
|
