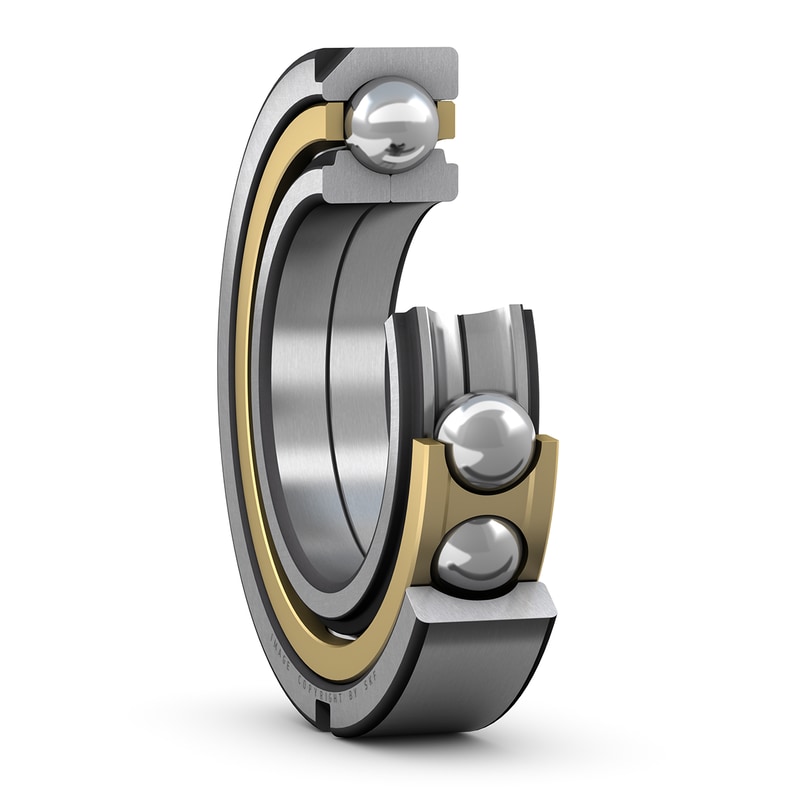

Four-point contact ball bearings with locating slots can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves. The locating slots can be used to prevent the outer ring from rotating.
| d |
340 mm
|
Bore diameter |
|---|---|---|
| D |
520 mm
|
Outside diameter |
| B |
82 mm
|
Width |
| d1 |
≈ 403 mm
|
Shoulder diameter inner ring |
| D1 |
≈ 457 mm
|
Shoulder diameter outer ring/ inner diameter housing washer |
| a |
301 mm
|
Distance pressure point(s) |
| h |
15 mm
|
Locating slot depth outer ring |
| b |
12.5 mm
|
Locating slot width outer ring |
| r0 |
2.5 mm
|
Corner radius locating slot |
| r1,2 |
min. 5 mm
|
Chamfer dimension inner ring |
| da |
min. 362 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 498 mm
|
Abutment diameter housing |
| ra |
max. 4 mm
|
Fillet radius |
| Basic dynamic load rating | C |
780 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 700 kN
|
| Fatigue load limit | Pu |
35.5 kN
|
| Limiting speed |
1 800 r/min
|
|
| Calculation factor | A |
8.12
|
| Limiting value | e |
0.95
|
| Calculation factor | X |
0.6
|
| Calculation factor | Y0 |
0.58
|
| Calculation factor | Y1 |
0.66
|
| Calculation factor | Y2 |
1.07
|
| Mass bearing |
67.5 kg
|
