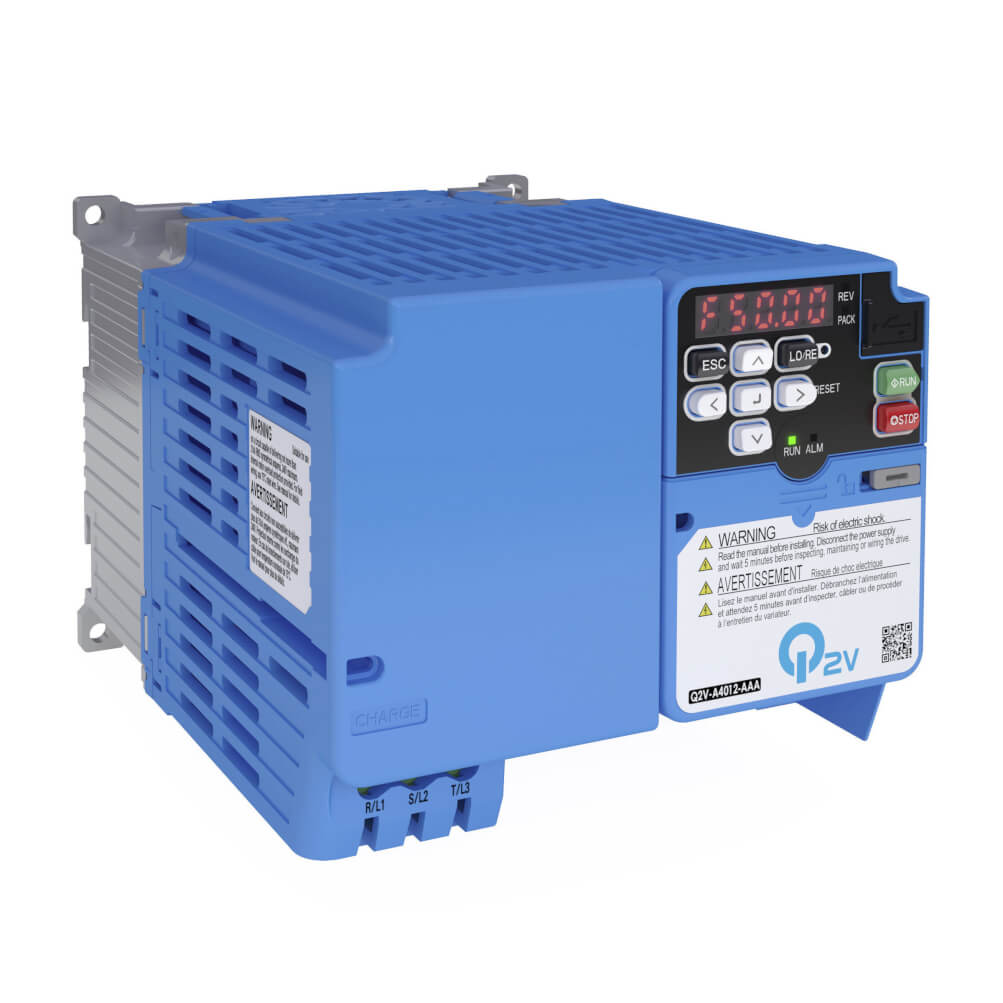

Inverter Q2V, 1x200V, ND: 12.2 A / 3.0 kW, HD: 11.0 A / 2.2 kW, IP20, EMC filter class C1, max. output freq. 590Hz
| Drive control method | Open loop V/f, Open loop vector |
| Drive supply voltage | 230 V single phase |
| Max. motor output at constant torque (HD) | 2.2 kW |
| Max. motor output at variable torque (ND) | 3.0 kW |
| Built in EMC filter | ✔️ |
| Degree of protection (IP) | IP20 |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 128 mm |
| Product Width (unpacked) | 140 mm |
| Product Depth (unpacked) | 203 mm |
| Product Weight (unpacked) | 2700 g |
| AX-FIC1030-SE | Common footprint RFI filter for Compact series (Q2V/V1000/J1000/MX2), 24 A, 200 VAC, single phase. Please check datasheet for the correct drive selection. |
|
|
| AX-FIC1030-SE-LL | Low Leakage common footprint RFI filter for Compact series (Q2V/V1000/J1000/MX2), 24 A, 200 VAC. Please check datasheet for the correct drive selection. |
|
|
| AX-RAI00630240-DE | AC input reactor, 25 A, 0.63 mH, for 2.2 kW sizes, 200 VAC, 1 phase |
|
|
| AX-RAO01150220-DE | AC output reactor, 22 A, 1.15 mH, for 5.5 kW, 200 VAC, 3 phase |
|
|
| JOHB-Q2V | Q2V option card enclosure |
|
|
| JVOP-KPBCH04AAZ | Blank cover kit for Q2V |
|
|
| JVOP-KPLCA04AEZ | Q2 LCD Keypad (w/o Bluetooth) |
|
|
| SI-EL3 | POWERLINK option board for A1000, Q2A and Q2V. |
|
|
| SI-EN3 | EtherNet/IP option board for A1000, Q2A and Q2V inverters. |
|
|
| SI-EN3D | Dual Port EtherNet IP option board for A1000, Q2A and Q2V inverters. |
|
|
| SI-EP3 | PROFINET option board for A1000, Q2A and Q2V inverters. |
|
|
 |
SI-N3 | DeviceNet option board for A1000, Q2A and Q2V inverters. |
|
 |
SI-P3 | PROFIBUS DP option board for A1000, Q2A and Q2V inverters. |
|
| SI-S3 | CANopen option board for A1000, Q2A and Q2V inverters. |
|
Datasheet
EN PDF
Inverter Q2V 200V, ND: 82 A / 22 kW, HD: 75 A / 18.5 kW, without integrated EMC filter, max. output freq. 590Hz
Inverter Q2V 200V, ND: 56.0 A / 15.0 kW, HD: 47.0 A / 11.0 kW, with integrated EMC C3-Filter, max. output freq. 590Hz
Inverter Q2V 200V, ND: 1.2 A / 0.2 kW, HD: 0.8 A / 0.1 kW, with integrated EMC C3-Filter, max. output freq. 590Hz
Inverter Q2V 200V, ND: 21.0 A / 5.5 kW, HD: 17.6 A / 4 kW, with integrated EMC C3-Filter, max. output freq. 590Hz
