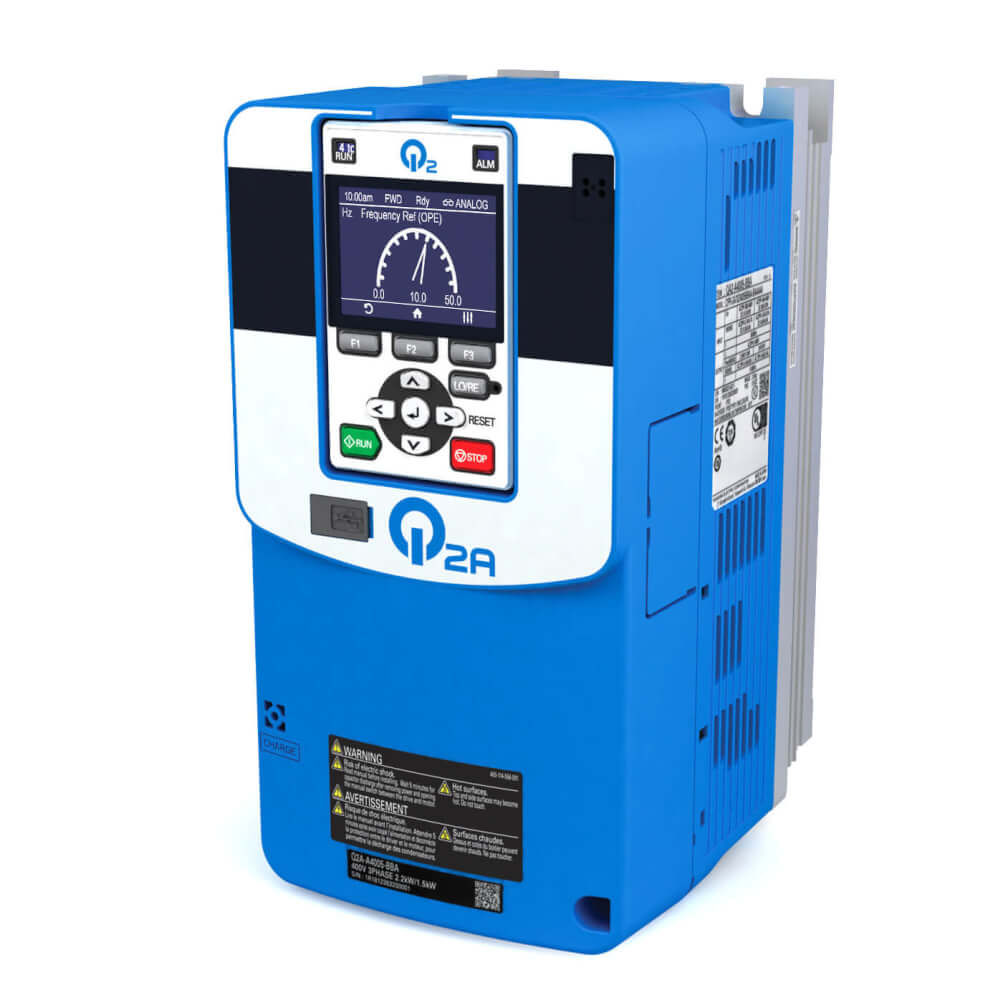

Inverter Q2A, 200 V, ND: 9.6 A / 2.2 kW, HD: 8 A / 1.5 kW, IP20, max. output freq. 590 Hz
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 230 V three phase |
| Max. motor output at constant torque (HD) | 1.5 kW |
| Max. motor output at variable torque (ND) | 2.2 kW |
| Built in EMC filter | ✔️ |
| Degree of protection (IP) | IP20 |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor, Synchronous reluctance motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Communication option(s) | Bluetooth, CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 260 mm |
| Product Width (unpacked) | 140 mm |
| Product Depth (unpacked) | 176 mm |
| Product Weight (unpacked) | 3200 g |
 |
AX-FER2102-PE | Ferrite choke, 21mm diameter, for 2.2kW inverters and below |
|
 |
AX-RC03510093-DE | DC link reactor, 9.3 A, 3.51 mH, for 0.7 kW and 1.5 kW, 200 VAC |
|
 |
JVOP-KPLCA04AEZ | Q2 LCD Keypad (w/o Bluetooth) |
|
 |
PG-B3 | Open collector PG interface for A1000 and Q2A inverters. A, B, Z pulse, fmax 50 kHz |
|
 |
PG-F3 | Endat PG interface for A1000 and Q2A inverters. For speed feedback input by connection a motor encoder type: EnDat 2.1/01, EnDat 2.2/01, EnDat 2.2/22 (HEIDENHAIN) |
|
 |
PG-RT3 | Resolver PG interface card A1000 and Q2A inverters. TS2640N321E64 |
|
 |
PG-X3 | Line Driver PG interface for A1000 and Q2A inverters. A, B, Z differential (RS422) input, fmax 300 kHz |
|
 |
Q2-FIA4020-SE | Q2A footprint RFI filter, 20 A, 3~ 400 VAC, for 4009, 4012 models |
|
 |
SI-EL3 | POWERLINK option board for A1000, Q2A and Q2V. |
|
 |
SI-EN3 | EtherNet/IP option board for A1000, Q2A and Q2V inverters. |
|
 |
SI-EN3D | Dual Port EtherNet IP option board for A1000, Q2A and Q2V inverters. |
|
 |
SI-EP3 | PROFINET option board for A1000, Q2A and Q2V inverters. |
|
 |
SI-ES3 | EtherCAT option board for A1000, Q2A and Q2V inverters. |
|
 |
SI-N3 | DeviceNet option board for A1000, Q2A and Q2V inverters. |
|
 |
SI-P3 | PROFIBUS DP option board for A1000, Q2A and Q2V inverters. |
|
 |
SI-S3 | CANopen option board for A1000, Q2A and Q2V inverters. |
|
Datasheet
EN PDF
Inverter Q2A, 200 V, ND: 21 A / 5.5 kW, HD: 17.5 A / 4.0 kW, IP20, max. output freq. 590 Hz
Inverter Q2A, 200 V, ND: 6 A / 1.1 kW, HD: 5 A / 0.75 kW, IP20, max. output freq. 590 Hz
Inverter Q2A, 200 V, ND: 257 A / 75 kW, HD: 215 A / 55 kW, IP20, max. output freq. 590 Hz
Inverter Q2A, 200 V, ND: 138 A / 37 kW, HD: 115 A / 30 kW, IP20, max. output freq. 590 Hz
