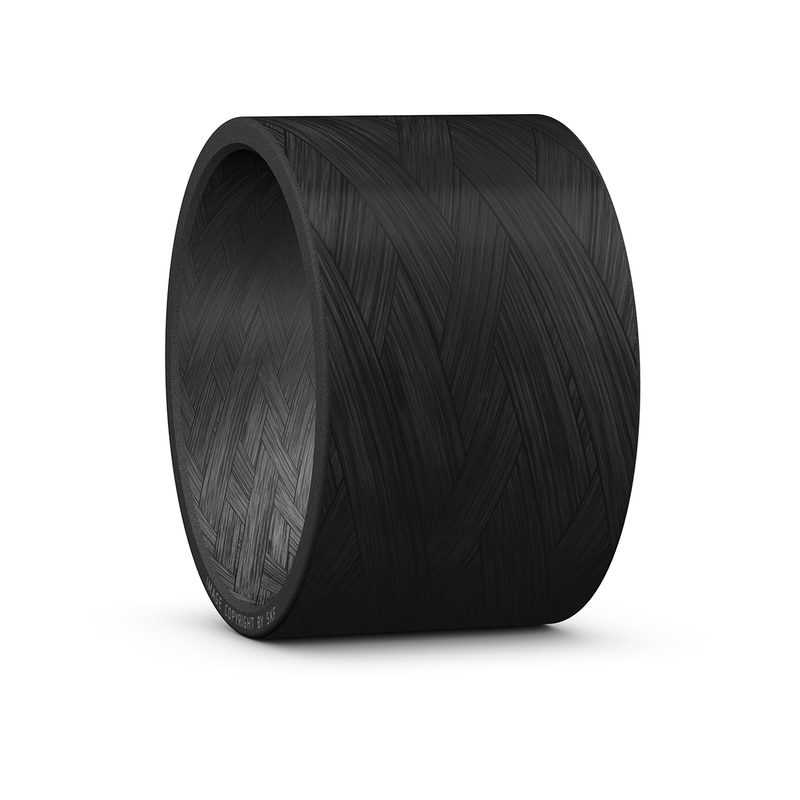

SKF filament wound straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. The composite material is specially developed to accommodate heavy loads, impact loads and vibrations. The bushings are also less sensitive to misalignment and have excellent dry sliding characteristics.
| Material |
Filament wound
|
| Operating temperature |
min. -50 °C
|
| Operating temperature |
max. 140 °C
|
| d |
150 mm
|
Bore diameter |
|---|---|---|
| D |
165 mm
|
Outside diameter |
| B |
120 mm
|
Width |
| Tolerance shaft |
h8
|
| Tolerance housing |
H7
|
| Basic dynamic load rating, radial direction | C |
2 500 kN
|
|---|---|---|
| Basic static load rating, radial direction | C0 |
3 550 kN
|
| Specific dynamic load factor | K |
140 N/mm²
|
| Specific static load factor | K0 |
200 N/mm²
|
| Effective load carrying cross section | A |
17 700 mm²
|
| Permissible sliding velocity | v |
max. 0.5 m/s
|
| Coefficient of friction | µ |
min. 0.03
|
| Coefficient of friction | µ |
max. 0.08
|
| Mass bushing |
0.83 kg
|
