SIZE RANGE: 3/8 inch (10 mm)
MAX TEMP: 180°F (80°C)
MAX PRESSURE: 400 PSI

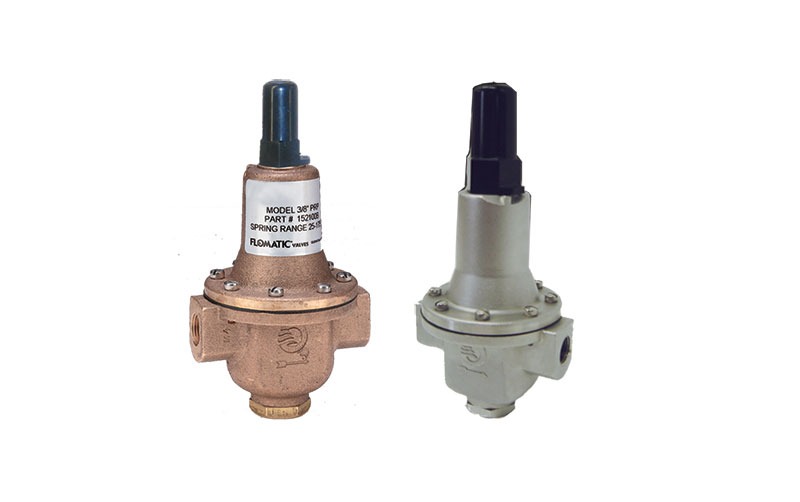

PRP – ⅜” Pressure Reducing Pilot in Unleaded Bronze or 316 Stainless Steel – Pilot control valve that automatically reduces a higher inlet pressure to a lower outlet pressure. It is a direct acting, spring-loaded, diaphragm valve that operates hydraulically and is designed to maintain a pre-set outlet pressure. Senses downstream pressure directly.
Temp Max: 180°F (80°C)
Pressure Max: 400 PSI
| Part Number | Size | Spring Range | List Price |
|---|---|---|---|
| 152100A | 3/8″ | 5-80 psi | $382 |
| 152100B | 3/8″ | 25-125 psi | $382 |
| 152100C | 3/8″ | 2-35 psi | $382 |
| 152100D | 3/8″ | 30-300 psi | $382 |
| 152100SA | 3/8″ | 5-80 psi | $599 |
| 152100SB | 3/8″ | 25-125 psi | $599 |
| 152100SC | 3/8″ | 2-35 psi | $599 |
| 152100SD | 3/8″ | 30-300 psi | $599 |
