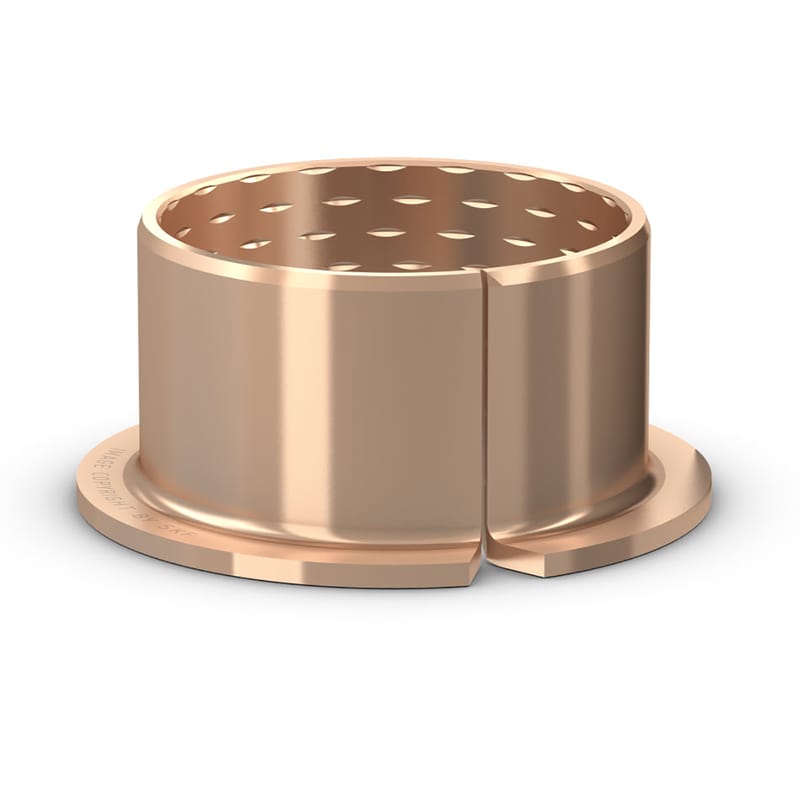

SKF wrapped bronze flanged bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads as well as axial loads in one direction. They are an excellent solution for dirty environments where high levels of contamination make relubrication necessary. Their sliding surface has diamond-shaped pockets that serve as reservoirs to progressively release lubricant during operation.
| Material |
Wrapped bronze
|
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 150 °C
|
| d |
35 mm
|
Bore diameter |
|---|---|---|
| D |
39 mm
|
Outside diameter |
| B |
20 mm
|
Width |
| D1 |
50 mm
|
Outside diameter flange |
| B1 |
2 mm
|
Width flange |
| r |
max. 2 mm
|
Radius flange/bushing outside diameter |
| Tolerance shaft |
f7
|
| Tolerance housing |
H7
|
| Specific dynamic load factor | K |
40 N/mm²
|
|---|---|---|
| Specific static load factor | K0 |
120 N/mm²
|
| Permissible sliding velocity | v |
max. 1 m/s
|
| Coefficient of friction | µ |
min. 0.08
|
| Coefficient of friction | µ |
max. 0.15
|
| Mass bushing |
0.04 kg
|
