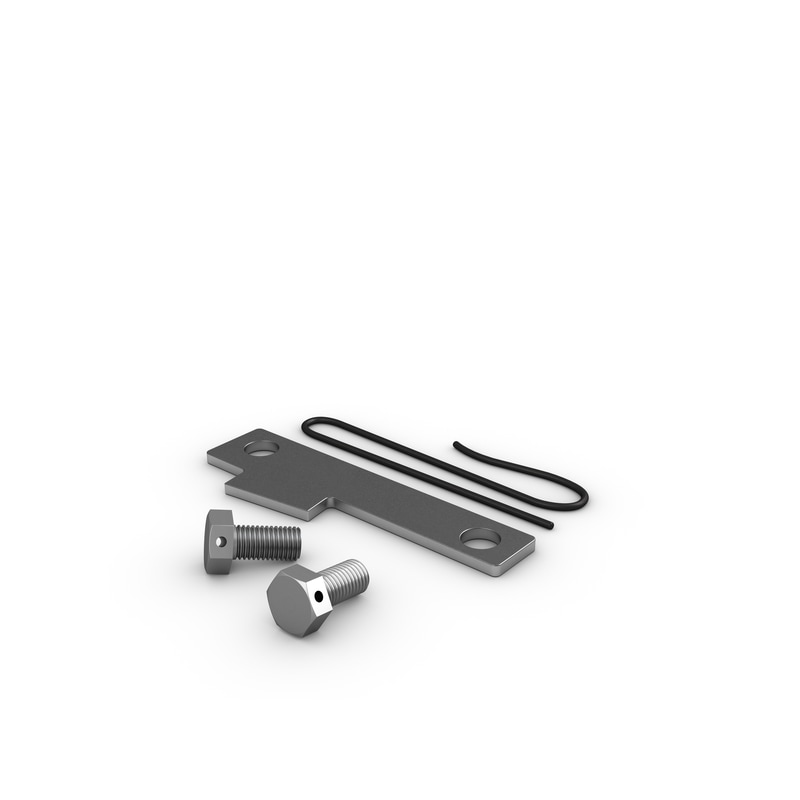

PL locking plates are locking devices, used to secure N lock nuts onto a shaft or adapter sleeve and prevent unintentional loosening. The locking plates engage a keyway in the shaft or adapter sleeve. Two bolts, secured with a locking wire, attach the locking plates to the side face of the lock nut. A new locking plate should be used each time the corresponding lock nut is installed.
| L |
233.375 mm
|
Length |
|---|---|---|
| A1 |
55.575 mm
|
Width |
| A2 |
38.1 mm
|
Width for locking |
| A3 |
47.625 mm
|
Key width |
| B |
3.969 mm
|
Thickness material |
| Mass locking plate |
0.46 kg
|
| Hexagonal head bolts |
5/8-11×1-1/4
|
