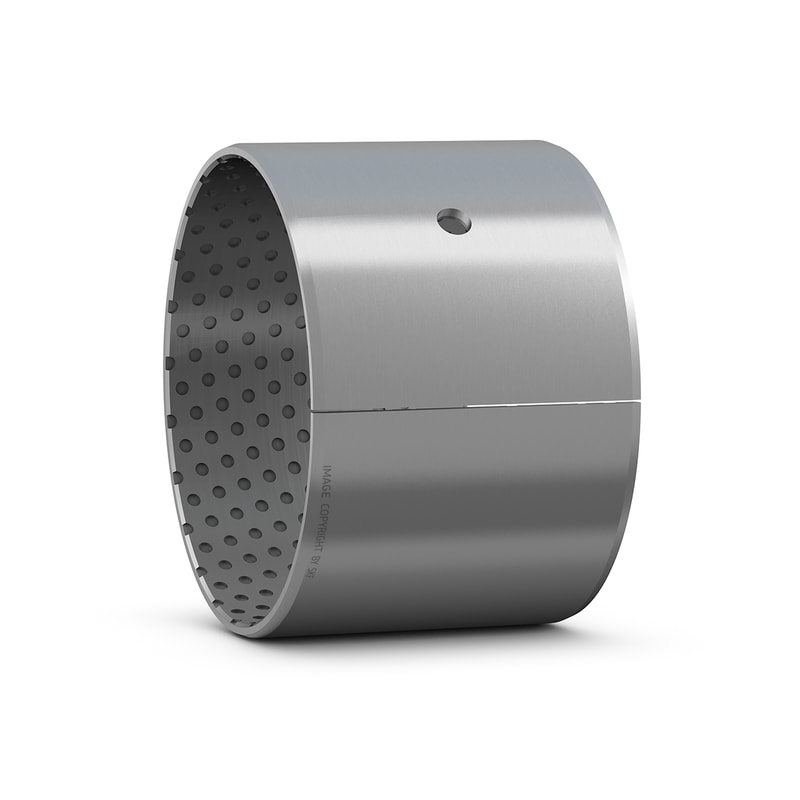

SKF POM composite straight (cylindrical) bushings, inch sizes, are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. After initial grease fill, they are optimized for minimal maintenance under tough operating conditions. Pockets in the sliding surface serve as grease reservoirs. Relubrication can extend bearing service life considerably. Despite their compact design, they can accommodate heavy loads.
| Material |
POM composite
|
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 110 °C
|
| d |
14.288 mm
|
Bore diameter |
|---|---|---|
| D |
16.669 mm
|
Outside diameter |
| B |
19.05 mm
|
Width |
| M |
3 mm
|
Diameter lubrication hole |
| c1 |
min. 0.1 mm
|
Length chamfer bore – axial direction |
| c1 |
max. 0.6 mm
|
Length chamfer bore – axial direction |
| c2 |
min. 0.2 mm
|
Length chamfer outside diameter – axial direction |
| c2 |
max. 1 mm
|
Length chamfer outside diameter – axial direction |
| Shaft diameter range |
min. 14 mm
|
| Shaft diameter range |
max. 14.026 mm
|
| Housing bore range |
min. 16.667 mm
|
| Housing bore range |
max. 16.685 mm
|
| Basic dynamic load rating, radial direction | C |
32.5 kN
|
|---|---|---|
| Basic static load rating, radial direction | C0 |
68 kN
|
| Specific dynamic load factor | K |
120 N/mm²
|
| Specific static load factor | K0 |
250 N/mm²
|
| Factor depending on material and bearing type | KM |
1 900
|
| Permissible sliding velocity | v |
max. 2.5 m/s
|
| Coefficient of friction | µ |
min. 0.02
|
| Coefficient of friction | µ |
max. 0.2
|
| Mass bushing |
0.0066 kg
|
