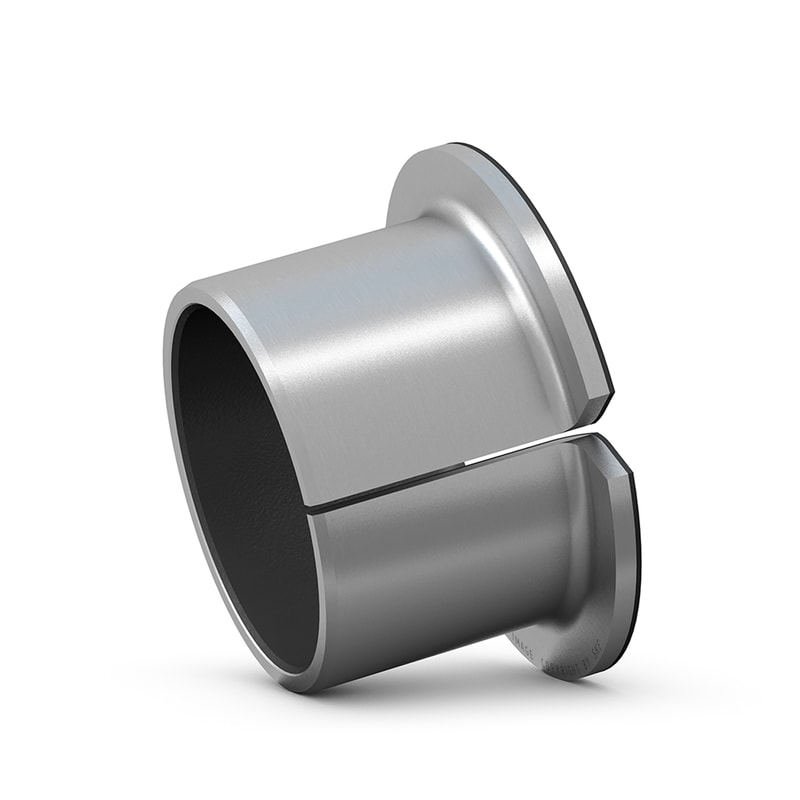

SKF PTFE composite flanged bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads as well as axial loads in one direction. Despite their thin-walled design, they can accommodate heavy loads. They also provide good heat dissipation, therefore enabling relatively high sliding velocities.
| Material |
PTFE composite
|
| Operating temperature |
min. -200 °C
|
| Operating temperature |
max. 250 °C
|
| d |
25 mm
|
Bore diameter |
|---|---|---|
| D |
28 mm
|
Outside diameter |
| B |
11.5 mm
|
Width |
| D1 |
35 mm
|
Outside diameter flange |
| B1 |
1.5 mm
|
Width flange |
| c1 |
min. 0.1 mm
|
Length chamfer bore – axial direction |
| c1 |
max. 0.7 mm
|
Length chamfer bore – axial direction |
| c2 |
min. 0.2 mm
|
Length chamfer outside diameter – axial direction |
| c2 |
max. 1 mm
|
Length chamfer outside diameter – axial direction |
| r |
max. 1.5 mm
|
Radius flange/bushing outside diameter |
| Tolerance shaft |
f7
|
| Tolerance housing |
H7
|
| Basic dynamic load rating, radial direction | C |
17.3 kN
|
|---|---|---|
| Basic static load rating, radial direction | C0 |
54 kN
|
| Basic dynamic load rating, axial direction | Ca |
20.4 kN
|
| Basic static load rating, axial direction | C0a |
64 kN
|
| Specific dynamic load factor | K |
80 N/mm²
|
| Specific static load factor | K0 |
250 N/mm²
|
| Factor depending on material and bearing type | KM |
480
|
| Permissible sliding velocity | v |
max. 2 m/s
|
| Coefficient of friction | µ |
min. 0.03
|
| Coefficient of friction | µ |
max. 0.25
|
| Mass bushing |
0.013 kg
|
