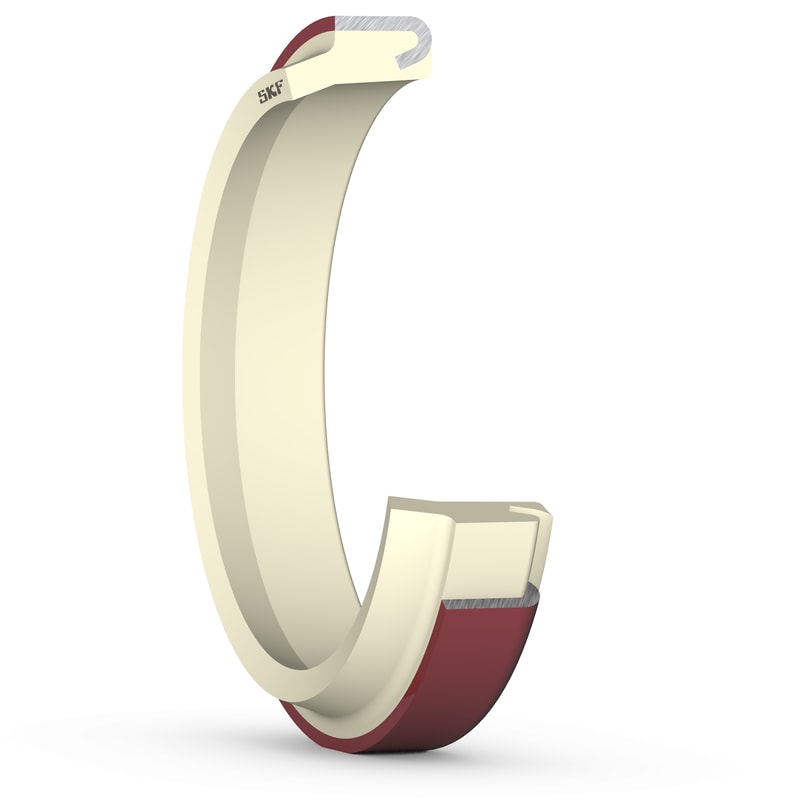

PA 120X130X7X10Polyurethane press-in wiper seal with a single protruding lip and a steel retaining ring
Hydraulic wiper seals prevent contaminants from entering a cylinder assembly and hydraulic system. PA seals are polyurethane press-in wiper seals with a steel retaining ring. They have an effective, single wiping lip that protrudes from the cylinder head. This design allows small radial cross sections and reduces the risk of contaminant adherence on the wiper lip.
Dimensions
| d |
120 mm
|
Rod diameter |
|---|---|---|
| D |
130 mm
|
Housing groove diameter |
| L |
7.5 mm
|
Housing groove width |
| S |
5 mm
|
Radial depth |
| R |
max. 0.8 mm
|
Groove radius |
| C |
min. 4 mm
|
Lead-in chamfer length on rod |
| C1 |
min. 0.7 mm
|
Lead-in chamfer length in housing |
| C1 |
max. 1 mm
|
Lead-in chamfer length in housing |
| H |
7 mm
|
Seal width in housing |
| H2 |
10 mm
|
Total seal width |
|
tol d Tolerance for rod diameter is determined by the rod seal.
|
||
| tol D |
0.063 mm
|
Upper limit deviation |
|---|---|---|
|
0 mm
|
Lower limit deviation | |
|
H10
|
Tolerance class for housing diameter | |
| tol L |
0.5 mm
|
Upper limit deviation |
|
0 mm
|
Lower limit deviation | |
Materials
| Primary sealing element |
Polyurethane (TPU W93)
|
Operating conditions
| Speed |
max. 1 m/s
|
|
| Temperature |
min. -40 °C
|
|
| Temperature |
max. 110 °C
|
|
|
Maximum values of application parameters (e.g. pressure, speed, temperature) should not be applied continuously nor simultaneously.
|
||
Compliance with standard
| In accordance with |
ISO 6195-B
|
