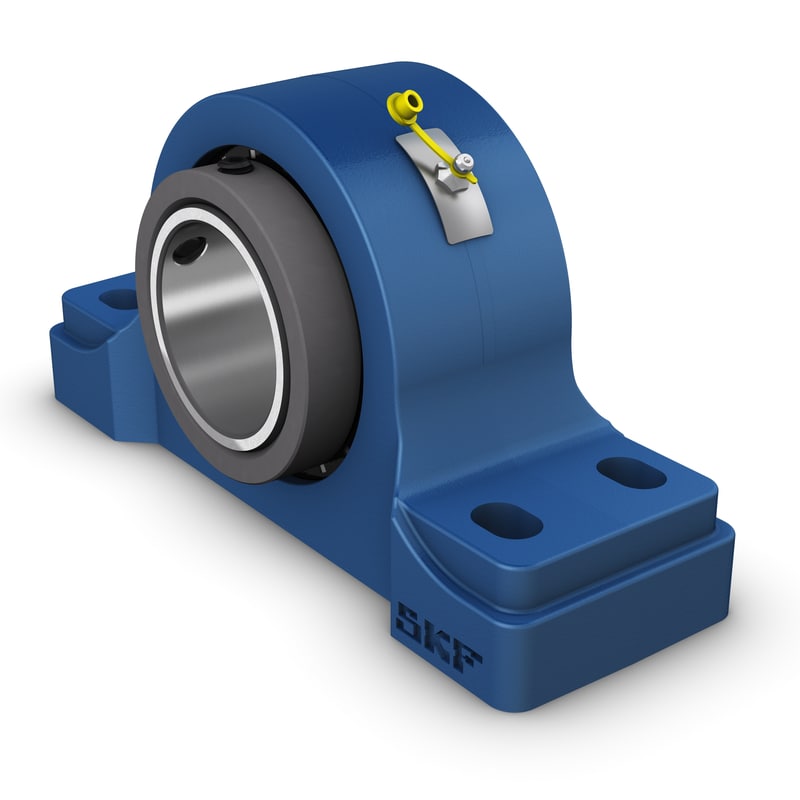

Pillow block roller bearing units consist of a tapered roller bearing mounted in a non-split type E dimensions housing that can be bolted to a support surface. This variant has a four-bolt base and set screw locking, holding the shaft firmly against the inner ring of the bearing. The units are sealed and lubricated and ready to use. This assortment of units covers a wide range of requirements, in inch dimensions.
| Metric/inch series |
Inch
|
| Bearing insert |
Tapered roller bearing
|
| Bearing position |
Locating
|
| Locking method |
Set screws
|
| Bearing housing seal type |
Heavy-duty seal
|
| da |
80 mm
|
Shaft diameter |
|---|---|---|
| d2 |
130.175 mm
|
Collar outer diameter |
| A |
114.3 mm
|
Housing foot width |
| B |
127 mm
|
Inner ring width |
| H |
95.25 mm
|
Height base to center |
| H1 |
57.15 mm
|
Housing foot height |
| H2 |
190.5 mm
|
Housing height |
| J |
min. 273.05 mm
|
Distance between attachment bolts, max. |
| J |
max. 285.75 mm
|
Distance between attachment bolts, min. |
| J |
279.4 mm
|
Distance of attachment bolts |
| J1 |
60.325 mm
|
Axial distance bolt to bolt |
| L |
342.9 mm
|
Housing length |
| N |
23.813 mm
|
Width foot slot width |
| N1 |
30.163 mm
|
Length of attachment bolt hole |
| s |
63.5 mm
|
Centre line unit to side face of inner ring |
| GN |
1/8-27 NPT
|
Thread of grease fitting |
|---|
| Basic dynamic load rating | C |
272 kN
|
|---|---|---|
| Basic static load rating | C0 |
430 kN
|
| Fatigue load limit | Pu |
47.5 kN
|
| Comparative radial load rating | CF |
73.5 kN
|
| Limiting speed |
1 550 r/min
|
|
| Limiting value | e |
0.5
|
| Calculation factor | Y1 |
1.35
|
| Calculation factor | Y2 |
2
|
| Calculation factor | Y0 |
1.3
|
| Bearing mean diameter | dm |
121.435 mm
|
| Axial holding force of the locking mechanism | Pa |
23.4 kN
|
| Mass bearing unit |
24.3 kg
|
| Attachment bolt diameter | G |
0.75 in
|
|---|---|---|
| Set screws |
1/2-13
|
|
| Number of set screws |
4
|
|
| Tightening torque for set screws |
69.486 N·m
|
|
| Grease quantity for relubrication |
17 g
|
