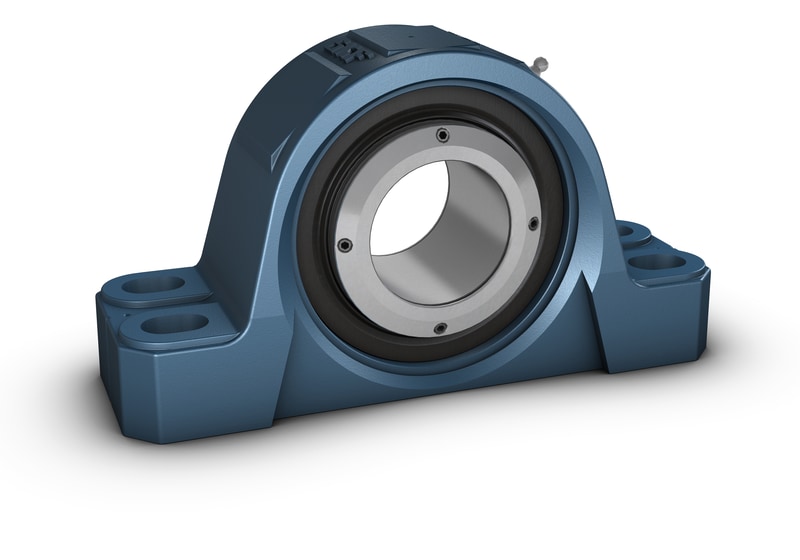

Pillow (plummer) block roller bearing units and take-up roller bearing units consist of a spherical or tapered roller bearing mounted in a non-split housing that can be bolted to a support surface. The units are sealed and lubricated and ready to use. This assortment of units covers a wide range of requirements, in metric and inch dimensions.
| Metric/inch series |
Inch
|
| Bearing insert |
Spherical roller bearing
|
| Bearing position |
Locating
|
| Locking method |
SKF ConCentra
|
| Bearing housing seal type |
Labyrinth seal
|
| da |
68.263 mm
|
Shaft diameter |
|---|---|---|
| d2 |
100.99 mm
|
Collar outer diameter |
| A |
101.6 mm
|
Housing foot width |
| A5 |
127.794 mm
|
Width including end cover |
| B |
71.438 mm
|
Inner ring width |
| H |
79.375 mm
|
Height base to center |
| H1 |
47.625 mm
|
Housing foot height |
| H2 |
160.338 mm
|
Housing height |
| J |
min. 231.775 mm
|
Distance between attachment bolts, max. |
| J |
max. 257.175 mm
|
Distance between attachment bolts, min. |
| J |
244.475 mm
|
Distance of attachment bolts |
| J1 |
53.975 mm
|
Axial distance bolt to bolt |
| L |
304.8 mm
|
Housing length |
| N |
19.05 mm
|
Width foot slot width |
| N1 |
31.75 mm
|
Length of attachment bolt hole |
| s |
35.719 mm
|
Centre line unit to side face of inner ring |
| S |
0.794 mm
|
Centre line of “fixed” bearing |
| GN |
1/8-27 NPT
|
Thread of grease fitting |
|---|
| Basic dynamic load rating | C |
212 kN
|
|---|---|---|
| Basic static load rating | C0 |
240 kN
|
| Fatigue load limit | Pu |
26.5 kN
|
| Limiting speed |
4 800 r/min
|
|
| Limiting value | e |
0.22
|
| Calculation factor | Y1 |
3
|
| Calculation factor | Y2 |
4.6
|
| Calculation factor | Y0 |
2.8
|
| Bearing mean diameter | dm |
102.616 mm
|
| Axial holding force of the locking mechanism | Pa |
20 kN
|
| P90° |
92.5 kN
|
Safe load at 90° |
|---|---|---|
| P135° |
48.9 kN
|
Safe load at 135° |
| P180° |
53.4 kN
|
Safe load at 180° |
| Mass bearing unit |
10.9 kg
|
| Attachment bolt diameter | G |
0.625 in
|
|---|---|---|
| Set screws |
M6-1 x 16mm
|
|
| Number of set screws |
5
|
|
| Tightening torque for set screws |
7.909 N·m
|
|
| Grease quantity for relubrication |
8 g
|
