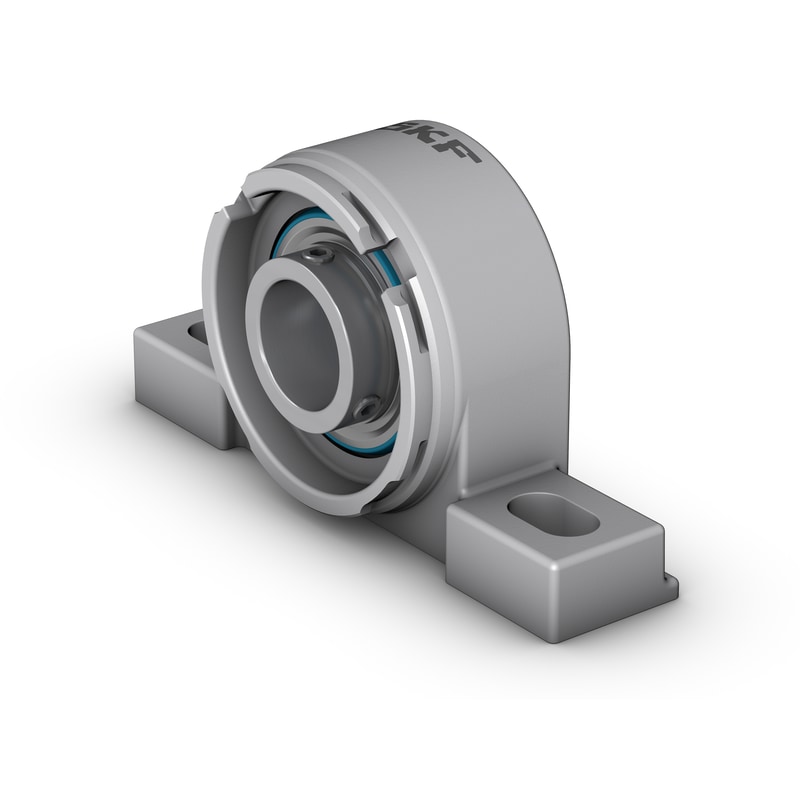

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a stainless-steel housing. They have a good corrosion resistance, and are suitable for applications with both constant and alternating directions of rotation. They have an inner ring extended on both sides and are locked onto the shaft by tightening a set screw on the inner ring, making them easy to mount.
| Compliance with standard |
Not standardized
|
| Purpose specific |
For food and beverage applications
|
| Material, housing |
Stainless steel
|
| Sealing, bearing |
Seal and flinger on both sides
|
| Sealing type, bearing |
Contact, gutter
|
| Sealing, unit |
Optional end cover
|
| Coating |
Without
|
| d |
31.75 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 39.7 mm
|
Shoulder diameter of inner ring |
| Dc |
72 mm
|
Centring diameter |
| Ha |
6.2 mm
|
Groove height for backseal |
| A |
34 mm
|
Base width |
| A1 |
39 mm
|
Top width |
| A5 |
67.1 mm
|
Width including end cover |
| B |
38.1 mm
|
Width of inner ring |
| B4 |
5 mm
|
Distance from locking device side face to thread centre |
| H |
42.9 mm
|
Height of spherical seat centre |
| H1 |
16.5 mm
|
Foot height |
| H2 |
83 mm
|
Overall height |
| J |
117.5 mm
|
Distance between attachment bolts |
| J |
max. 127 mm
|
Distance between attachment bolts |
| J |
min. 108 mm
|
Distance between attachment bolts |
| L |
152.5 mm
|
Overall length |
| N |
14.5 mm
|
Diameter of attachment bolt hole |
| N1 |
24 mm
|
Length of attachment bolt hole |
| s1 |
22.2 mm
|
Distance from locking device side face to raceway centre |
| Basic dynamic load rating | C |
16.3 kN
|
|---|---|---|
| Basic static load rating | C0 |
11.2 kN
|
| Fatigue load limit | Pu |
0.475 kN
|
| Limiting speed |
3 800 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
1.2 kg
|
| Set screw | G2 |
1/4-28 UNF
|
|---|---|---|
| Hexagonal key size for set screw |
3.175 mm
|
|
| Recommended tightening torque for set screw |
4 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
12 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.5 in
|
