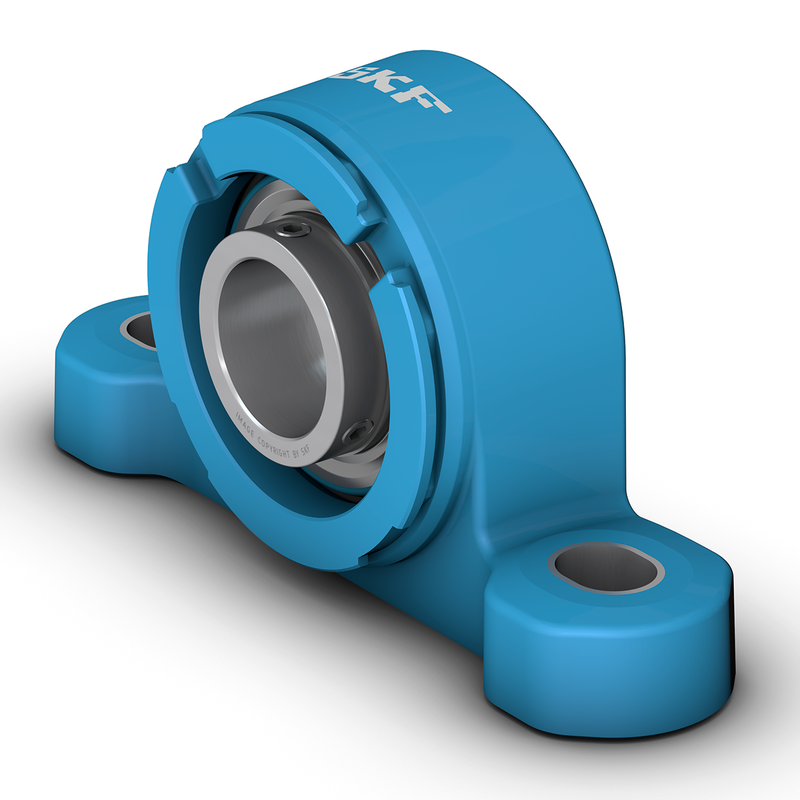

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing that is lightweight but robust and has excellent corrosion resistance. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
| Compliance with standard |
Not standardized
|
| Purpose specific |
For food and beverage applications
|
| Material, housing |
Composite for the SKF Food Line
|
| Sealing, bearing |
Seal and flinger on both sides
|
| Sealing type, bearing |
Contact, gutter
|
| Sealing, unit |
Optional end cover
|
| Coating |
Without
|
| d |
31.75 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 39.7 mm
|
Shoulder diameter of inner ring |
| Dc |
72 mm
|
Centring diameter |
| Ha |
6 mm
|
Groove height for backseal |
| A |
40 mm
|
Base width |
| A1 |
40 mm
|
Top width |
| A5 |
68.1 mm
|
Width including end cover |
| B |
38.1 mm
|
Width of inner ring |
| B1 |
38.1 mm
|
Overall bearing width |
| B4 |
5 mm
|
Distance from locking device side face to thread centre |
| H |
42.9 mm
|
Height of spherical seat centre |
| H1 |
20 mm
|
Foot height |
| H2 |
84 mm
|
Overall height |
| J |
119 mm
|
Distance between attachment bolts |
| J |
max. 122 mm
|
Distance between attachment bolts |
| J |
min. 116 mm
|
Distance between attachment bolts |
| L |
161 mm
|
Overall length |
| N |
14.2 mm
|
Diameter of attachment bolt hole |
| N1 |
17.4 mm
|
Length of attachment bolt hole |
| s1 |
22.2 mm
|
Distance from locking device side face to raceway centre |
| Basic dynamic load rating | C |
16.3 kN
|
|---|---|---|
| Basic static load rating | C0 |
11.2 kN
|
| Fatigue load limit | Pu |
0.475 kN
|
| Limiting speed |
3 800 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
0.49 kg
|
| Set screw | G2 |
1/4-28 UNF
|
|---|---|---|
| Hexagonal key size for set screw |
3.175 mm
|
|
| Recommended tightening torque for set screw |
4 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
12 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.5 in
|
