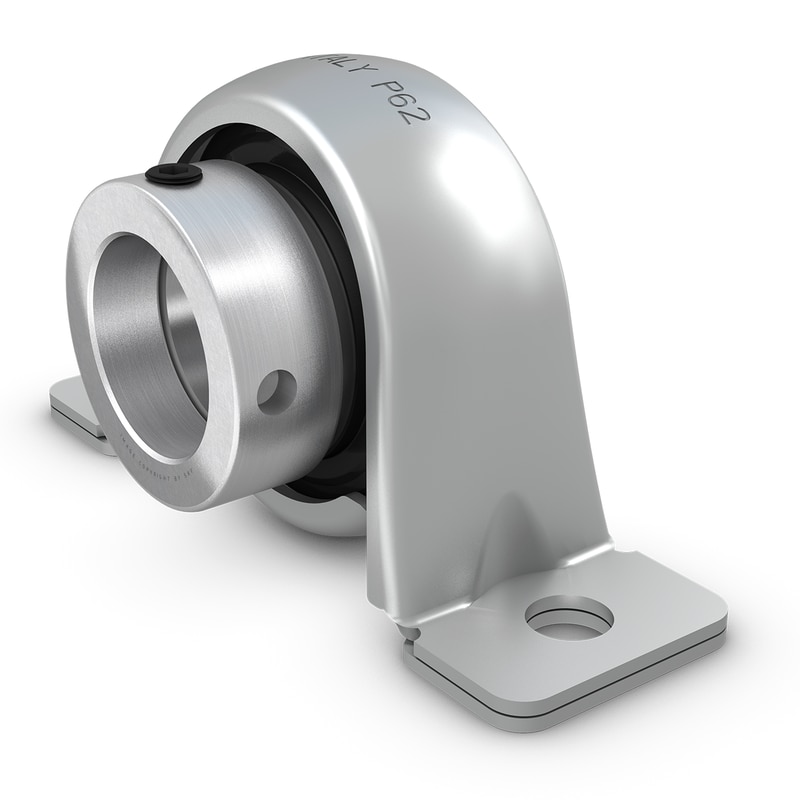

Pillow (plummer) block ball bearing units with pressed steel housing consisting of an insert bearing mounted in a pressed steel housing that can be bolted to a support surface. The unit components need to be ordered separately. The pressed steel housings for insert bearings are lightweight and made from cold-rolled steel and are zinc-coated for corrosion protection. The bearing is intended for use in applications where the direction of rotation is constant.
| Compliance with standard |
ISO with centre height deviation
|
| Purpose specific |
For material handling applications
|
| Material, housing |
Pressed steel
|
| Sealing, bearing |
Seal on both sides
|
| Sealing type, bearing |
Contact, standard
|
| Sealing, unit |
Without
|
| Coating |
Zinc-coated housing
|
| d |
17 mm
|
Bore diameter |
|---|---|---|
| d1 |
≈ 24.2 mm
|
Shoulder diameter of inner ring |
| d2 |
27.2 mm
|
Outside diameter of locking ring |
| A |
26 mm
|
Base width |
| A1 |
18 mm
|
Top width |
| B1 |
28.6 mm
|
Overall bearing width |
| B4 |
4.75 mm
|
Distance from locking device side face to thread centre |
| H |
22.1 mm
|
Height of spherical seat centre |
| H1 |
3 mm
|
Foot height |
| H2 |
43.5 mm
|
Overall height |
| J |
68 mm
|
Distance between attachment bolts |
| L |
85.5 mm
|
Overall length |
| N |
9.6 mm
|
Diameter of attachment bolt hole |
| s1 |
22.1 mm
|
Distance from locking device side face to raceway centre |
| Basic dynamic load rating | C |
9.56 kN
|
|---|---|---|
| Basic static load rating | C0 |
4.75 kN
|
| Fatigue load limit | Pu |
0.2 kN
|
| Permissible radial housing load |
max. 1.25 kN
|
|
| Limiting speed |
9 500 r/min
|
|
|
Limiting speed with shaft tolerance h6
|
| Mass bearing unit |
0.17 kg
|
| Set screw | G2 |
M6x0.75
|
|---|---|---|
| Hexagonal key size for set screw |
3 mm
|
|
| Recommended tightening torque for set screw |
4 N·m
|
|
| Recommended diameter for attachment bolts, mm | G |
8 mm
|
| Recommended diameter for attachment bolts, inch | G |
0.3125 in
|
