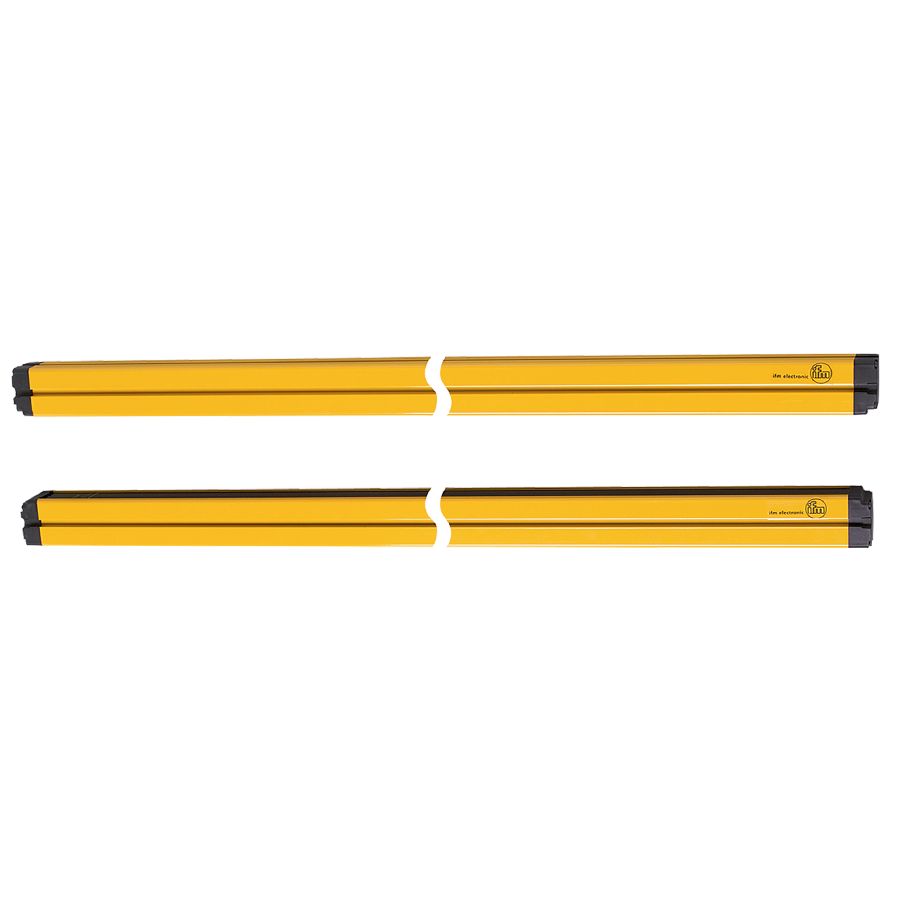

Product characteristics
| Type of light |
infrared light |
| Electrical design |
PNP |
| Protection |
IP 65 |
Application
| Protective function |
access prevention body protection |
Electrical data
| Operating voltage tolerance [%] |
20 |
| Operating voltage [V] |
24 DC |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Power-on delay time [s] |
< 10 |
| Type of light |
infrared light |
| Wave length [nm] |
950 |
Receiver
| Current consumption [mA] |
250 |
Transmitter
| Current consumption [mA] |
125 |
Outputs
| Electrical design |
PNP |
| Number of OSSD outputs |
2 |
| Max. current load per OSSD output [mA] |
500; (24 V) |
| Short-circuit protection |
yes |
Detection zone
| Protected area height [mm] |
810 |
| Number of beams |
3 |
| Protection area width (low light intensity) [m] |
8…30 |
| Protection area width (high light intensity) [m] |
18…60 |
Operating conditions
| Applications |
class C to EN 60654-1 weatherproof application |
| Ambient temperature [°C] |
-10…55 |
| Max. relative air humidity [%] |
95 |
| Protection |
IP 65 |
Tests / approvals
| EMC |
|
| Shock resistance |
|
| Vibration resistance |
|
Safety classification
| ESPE type (IEC 61496-1) |
4 |
| Complies with the requirements |
| ISO 13849-1: 2015 category 4, PL e |
| IEC 61508 SIL 3 |
| IEC 62061 SIL 3 |
|
| Mission time TM [h] |
175200 |
| PFH [1/h] |
7,7E-09 |
Mechanical data
| Weight [g] |
6910 |
| Dimensions [mm] |
1036 x 50 x 60 |
| Materials |
housing: aluminium; front pane: PC |
| Length L [mm] |
1036 |
Displays / operating elements
| Display |
| transmitter |
4 x LED |
| receiver |
6 x LED |
| receiver |
LC display |
|
Accessories
| Items supplied |
| mounting bracket: 6 |
| slot nuts: 6 |
|
Electrical connection – receiver
| Connection |
Connector: 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 1 mm² |
Electrical connection – transmitter
| Connection |
Connector: 1 x M12; coding: A |
