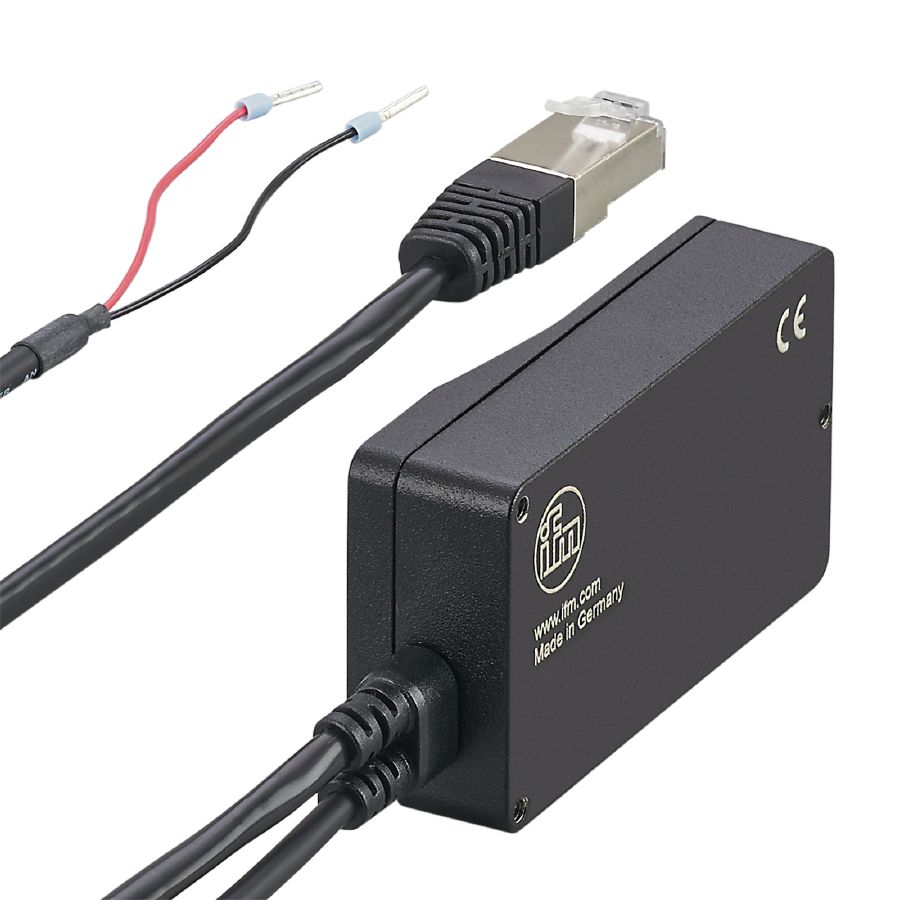

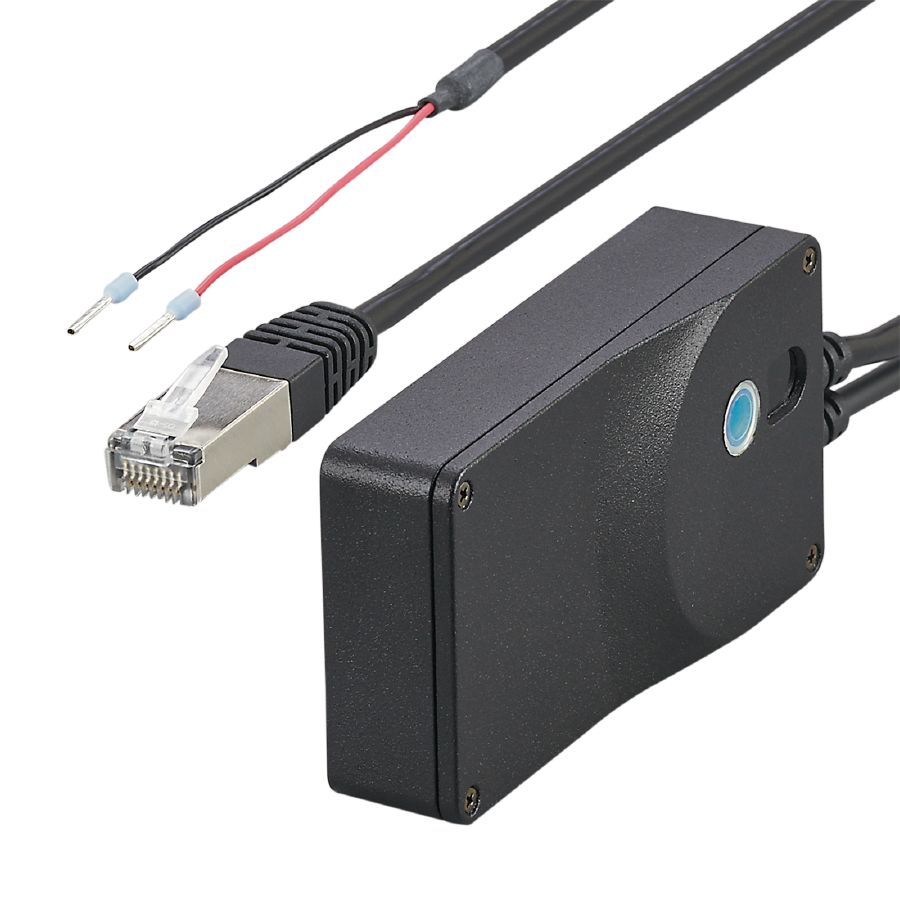

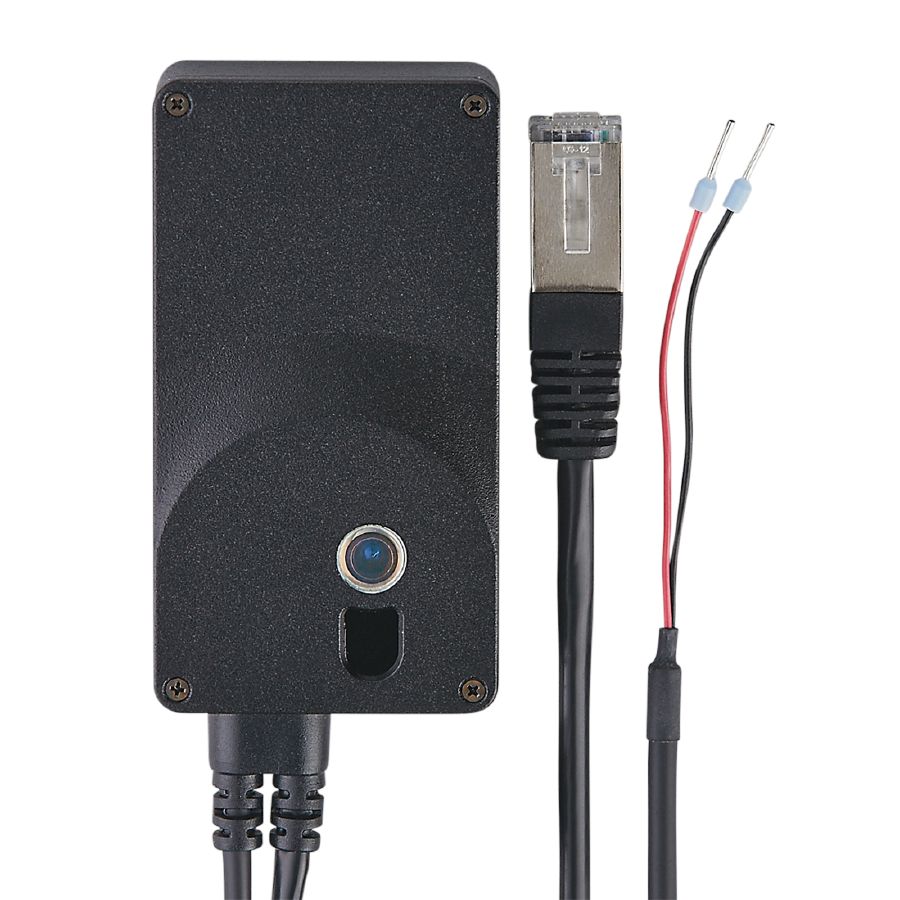

| Type of light | infrared light |
|---|---|
| Image resolution 3D [px] | 224 x 172 |
| Angle of aperture 3D [°] | 60 x 45 |
| Max. reading rate [Hz] | 20 |
| Application | output of 3D image data |
|---|
| Operating voltage [V] | 20.4…28.8 DC; (EN 61131-2) |
|---|---|
| Current consumption [mA] | < 500; (peak current pulsed; typical value: 160) |
| Power consumption [W] | 3.7 |
| Protection class | III |
| Type of light | infrared light |
| Wave length [nm] | 850 |
| Image sensor | PMD 3D ToF-Chip |
| Internal lighting | yes; (infrared: 850 nm invisible radiation LED) |
| Operating distance [mm] | 50…3000 | ||
|---|---|---|---|
| Note on operating distance |
|
||
| Image resolution 3D [px] | 224 x 172 | ||
| Angle of aperture 3D [°] | 60 x 45 | ||
| Max. reading rate [Hz] | 20 |
| Measuring range [m] | < 30; (depending on settings, object size, and reflectivity) |
|---|
| Parameter setting options | via PC with ifm Vision Assistant or XML-RPC |
|---|
| Communication interface | Ethernet |
|---|---|
| Usage type | parameter setting; data transmission |
| Number of Ethernet interfaces | 1 | |||
|---|---|---|---|---|
| Transmission standard | 10Base-T; 100Base-TX | |||
| Transmission rate | 10; 100 | |||
| Protocol | TCP/IP | |||
| Factory settings |
|
| Ambient temperature [°C] | -10…40 | ||
|---|---|---|---|
| Note on ambient temperature |
|
||
| Storage temperature [°C] | -40…85 | ||
| Protection | IP 50 | ||
| Max. immunity to extraneous light [klx] | 8 |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||
| Vibration resistance |
|
||||||
| Laser protection class | 1 | ||||||
| Notes on laser protection |
|
||||||
| Electrical protection |
|
||||||
| MTTF [years] | 66 |
| Weight [g] | 265.5 |
|---|---|
| Dimensions [mm] | 80 x 43.5 x 21 |
| Materials | housing: diecast zinc; lens: float glass; Illumination unit: PMMA Protective cover |
| Pack quantity | 1 pcs. |
|---|
| Cable: 1 m, PVC | |
| Connector: 1 x RJ45 |
| without lens distortion correction | ||||
| measuring range / distance [m] | Length [m] | Width [m] | ||
| 0.50 | 0.60 | 0.40 | ||
| 1.00 | 1.10 | 0.80 | ||
| 1.50 | 1.70 | 1.30 | ||
| 2.00 | 2.30 | 1.70 | ||
| 2.50 | 2.80 | 2.10 | ||
| 3.00 | 3.40 | 2.50 |
| measuring range / distance [m] | Exposure time | Repeatability | accuracy [mm] |
| Measured distance values (1 Sigma) on grey objects | |||
| reflectivity 18 % [mm] | |||
| 0.1…0.25 | 200 | ± 5 | ± 5 |
| 0.25…0.5 | 400 | ± 5 | ± 5 |
| 0.5…1 | 1000 | ± 7 | ± 10 |
| 1…2 | 2000 | ± 15 | ± 20 |
| 2…3 | 2000 | ± 60 | ± 40 |
| Repeatability | |
| referred to | distance measurement of an individual pixel |
| Measured at | centre of image with median filter |
| Ambient temperature | 20° C |
| -10…+40° C [mm/K] |
| 0.2 |
| typical |
| ± 4 |
| Measured at | reflectivity 18…90 % |
