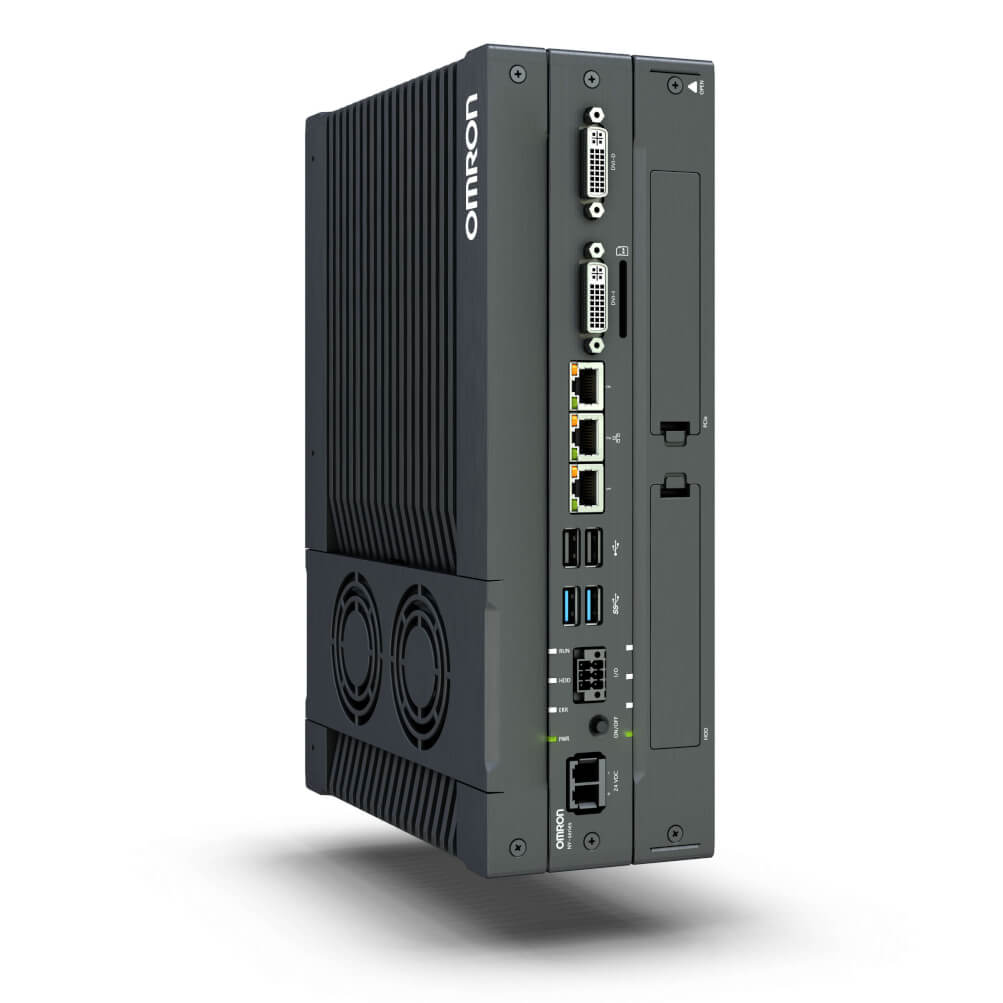

NYB27-42002

Max. number of motion axes	0 axes
Processor family	Intel® Core™ i7
Processor specification	7820EQ (3.0 GHz)
Cooling method	Active cooling (fan)
Memory	16 GB RAM (non ECC)
Storage	No Storage
Operating system	No OS
Expansion slot	1 PCIe + 2 drive slots, Hardware RAID
Modular port	DVI-D
Communication port(s)	EtherNet/IP, Ethernet TCP/IP, USB
Video output	DVI-I
Material housing	Aluminium, black
Degree of protection (IP)	IP20
Operating temperature	0-55 °C
Supply voltage DC	20.4-28.8 V
Product Height (unpacked)	89 mm
Product Width (unpacked)	282 mm
Product Depth (unpacked)	195 mm
Product Weight (unpacked)	3800 g

Accessories

	FH-VUAB 2M	Vision system accessory FH USB cable touch panel 2 m
	FH-VUAB 5M	Vision system accessory FH USB cable touch panel 5 m
	NY000-AB01	Wall mount bracket for Box PC
	NY000-AC00 2M	DVI cable 2 m
	NY000-AC00 5M	DVI cable 5 m
	NYM12W-C1000	Industrial Monitor, 12.1″ display with capacitive touchscreen, Build-in mounting, DVI-D port
	NYM15W-C1000	Industrial Monitor, 15.4″ display with capacitive touchscreen, Build-in mounting, DVI-D port
	NYM19W-C1000	Industrial Monitor, 18.5″ display with capacitive touchscreen, Build-in mounting, DVI-D port
	S8BA-24D24D240LF	UPS, DIN rail type, DC-DC, 10A, 240W
	S8BW-C02	UPS Connection cable (CONTACT)
