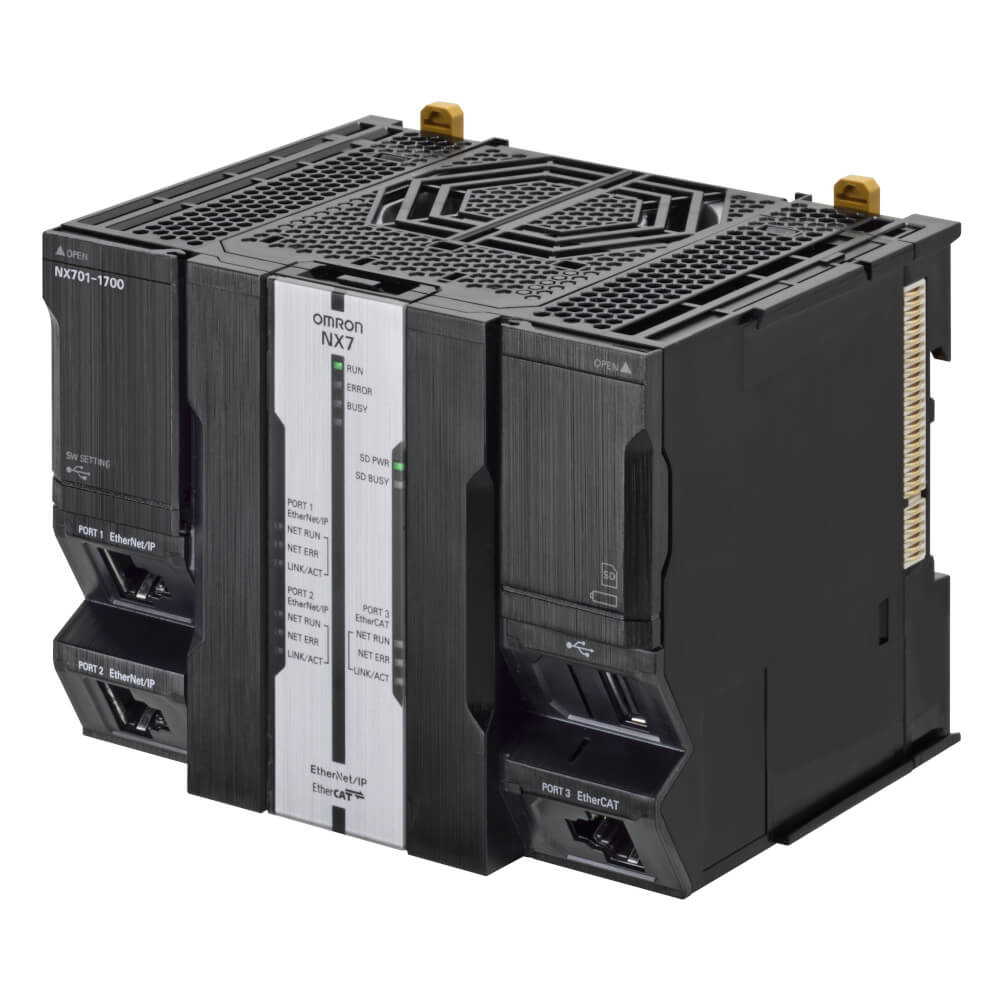

Sysmac NX7 CPU with Database Connectivity, 80MB memory, built-in EtherCAT (128 servo axes, in total 512 EtherCAT nodes) and 2 EtherNet/IP ports
| Controller functionality | DB connection, Motion control, OPC-UA, Sequence control |
| Primary task cycle time | 0.125 ms |
| Program memory | 80 MB |
| Variables memory | 260 MB |
| Max. number of synchronous axes | 128 |
| Max. number of axes (incl. virtual) | 128 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication option(s) | None |
| Max. number of remote I/O nodes | 512 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 0 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 132 mm |
| Product Depth (unpacked) | 100 mm |
| Product Weight (unpacked) | 880 g |
 |
GX-JC03 | 3-port EtherCAT Junction module, 24 VDC power supply |
|
 |
GX-JC06 | 6-port EtherCAT Junction module, 24 VDC power supply |
|
 |
GX-JC06-H | 6-port EtherCAT Junction module, 24 VDC power supply, with node switches |
|
 |
HMC-SD492 | 4 GB SD memory card |
|
 |
NX-PA9001 | Sysmac NX power supply unit, 100 to 240 VAC, 90 W, “RUN” output relay |
|
 |
NX-PD7001 | Sysmac NX power supply unit, 24 VDC, 70 W, “RUN” output relay |
|
 |
W4S1-05D | 5-port enhanced Ethernet switch |
|
 |
CJ1W-BAT01 | Battery for CJ1M PLCs |
|
 |
NX-END01 | Replacement end cover for NX I/O series |
|
Datasheet
EN PDF
Sysmac NX7 CPU, 80MB memory, built-in EtherCAT (256 servo axes, in total 512 EtherCAT nodes) and 2 EtherNet/IP ports
Sysmac NX7 AI Controller, 80MB memory, built-in EtherCAT (128 servo axes, in total 512 EtherCAT nodes) and 2 EtherNet/IP ports
Sysmac NX7 CPU, 80MB memory, built-in EtherCAT (128 servo axes, in total 512 EtherCAT nodes) and 2 EtherNet/IP ports
Sysmac NX7 AI Controller, 80MB memory, built-in EtherCAT (256 servo axes, in total 512 EtherCAT nodes) and 2 EtherNet/IP ports
