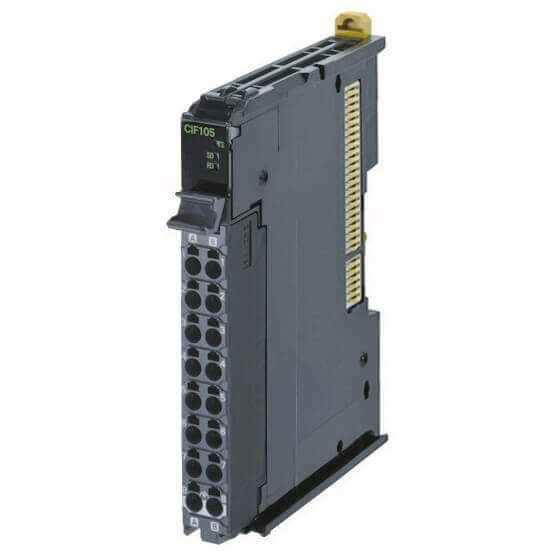

Serial Communication Interface Unit, 1 x RS-422/485C, screwless push-in connector, 12 mm wide
| I/O system | NX I/O Bus |
| Type of module | Communication |
| Signal processing | Free running |
| IO-Link master | ❌ |
| Number of I/O connectors | 1 |
| Suitable for safety functions | ❌ |
| SIL according to IEC 61508 | None |
| Communication port(s) | Serial RS-422, Serial RS-485 |
| Number of communication ports | 1 |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 12 mm |
| Product Depth (unpacked) | 80 mm |
| Product Weight (unpacked) | 69 g |
 |
NX-AUX02 | Terminal block coding pins for 10x NX I/O units (terminal block: 30 pins, unit: 30 pins) |
|
 |
NX-TBA162 | Replacement screwless push-in connector with 16 wiring terminals (marked A+B) |
|
