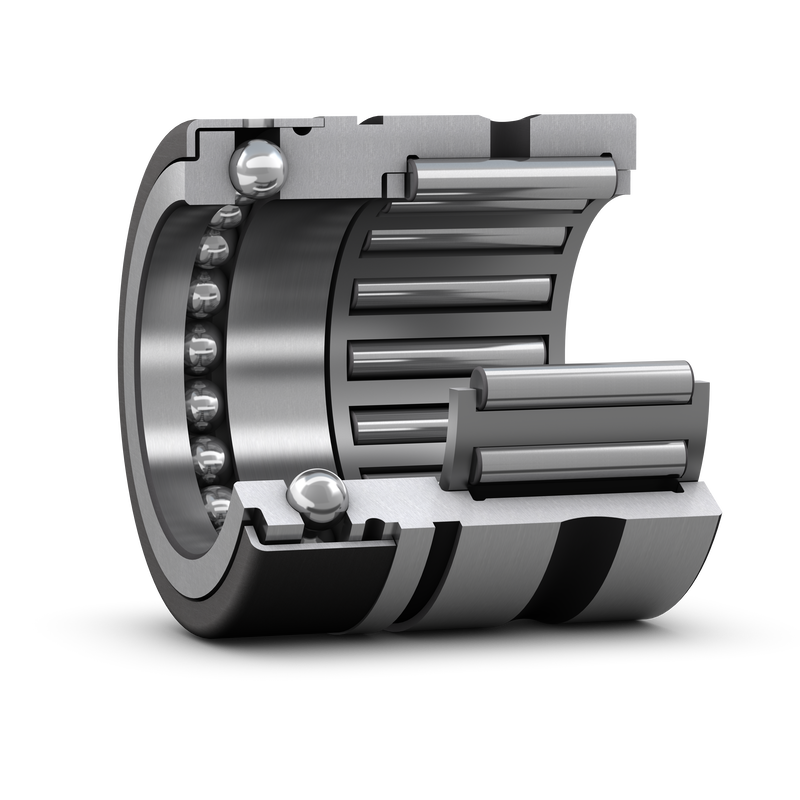

These bearings consist of a radial needle roller bearing combined with a full complement thrust ball bearing. Together they can accommodate both moderate radial loads and lighter axial loads in one direction. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space. The thrust part has a cover with lubrication holes.
| Fw |
17 mm
|
Diameter under rollers |
|---|---|---|
| D |
26 mm
|
Outside diameter |
| C |
28 mm
|
Width |
| C1 |
8 mm
|
Distance side face to lubrication hole |
| d |
17 mm
|
Bore diameter of thrust part |
| r1,2 |
min. 0.3 mm
|
Chamfer dimension |
| da |
min. 21 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 24 mm
|
Diameter of housing abutment |
| Ca |
12.2 mm
|
Distance side face to back face of snap ring |
| ra |
max. 0.3 mm
|
Radius of fillet |
| di |
14 mm
|
Bore diameter of associated inner ring |
| F |
17 mm
|
Diameter of inner ring raceway |
| Bi |
17 mm
|
Width of associated inner ring |
| Basic dynamic load rating, radial | C |
12.1 kN
|
|---|---|---|
| Basic static load rating, radial | C0 |
16.6 kN
|
| Basic dynamic load rating, axial | C |
6.37 kN
|
| Basic static load rating, axial | C0 |
13.4 kN
|
| Fatigue load limit, radial | Pu |
1.96 kN
|
| Fatigue load limit, axial | Pu |
0.5 kN
|
| Minimum axial load factor | A |
0.00093
|
| Reference speed |
7 000 r/min
|
|
| Limiting speed |
8 500 r/min
|
| Mass |
0.053 kg
|
