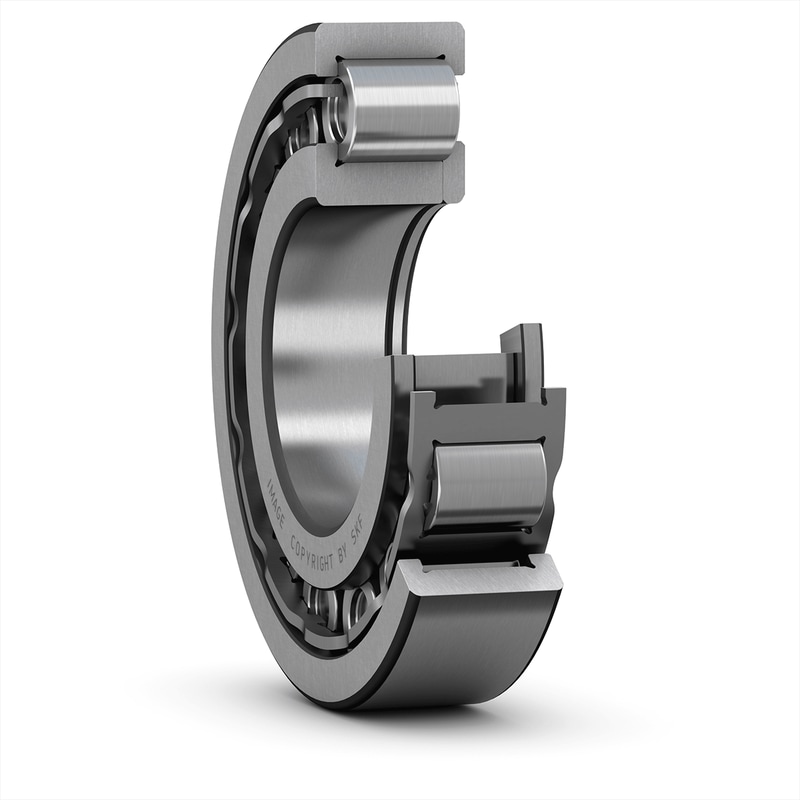

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
| SKF performance class |
SKF Explorer
|
| d |
120 mm
|
Bore diameter |
|---|---|---|
| D |
260 mm
|
Outside diameter |
| B |
55 mm
|
Width |
| d1 |
≈ 168 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 217.65 mm
|
Shoulder diameter of outer ring |
| F |
154 mm
|
Raceway diameter of inner ring |
| r1,2 |
min. 3 mm
|
Chamfer dimension |
| r3,4 |
min. 3 mm
|
Chamfer dimension of loose flange ring |
| da |
min. 134 mm
|
Diameter of spacer sleeve |
|---|---|---|
| db |
min. 171 mm
|
Diameter of shaft abutment |
| Da |
max. 244.8 mm
|
Diameter of housing abutment |
| ra |
max. 2.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
610 kN
|
|---|---|---|
| Basic static load rating | C0 |
620 kN
|
| Fatigue load limit | Pu |
69.5 kN
|
| Reference speed |
2 800 r/min
|
|
| Limiting speed |
3 200 r/min
|
|
| Minimum load factor | kr |
0.15
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0.6
|
| Mass |
14 kg
|
