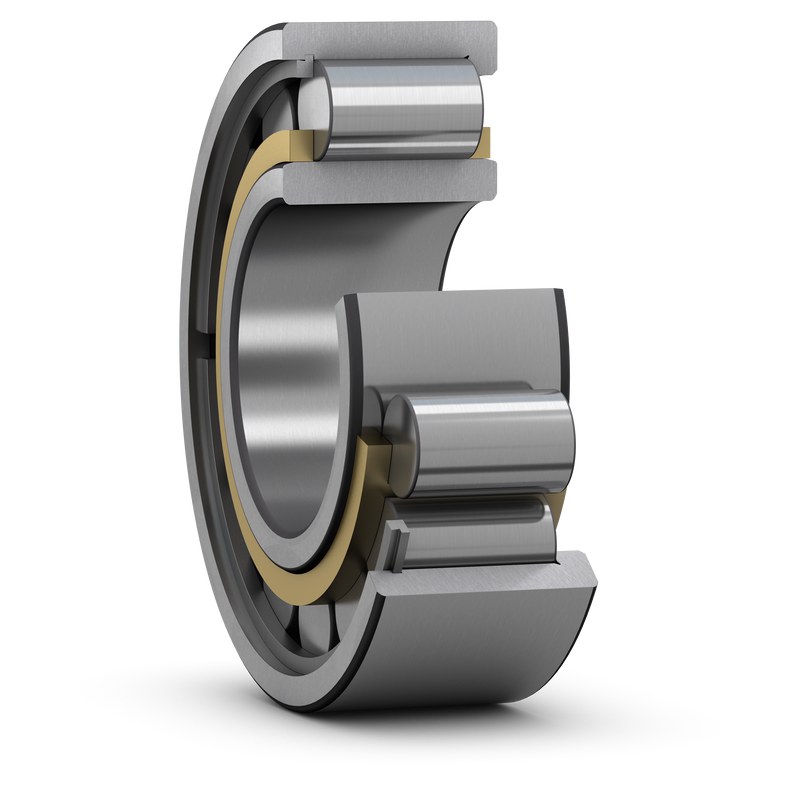

Single row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard, full complement and high capacity bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| SKF performance class |
SKF Explorer
|
| d |
240 mm
|
Bore diameter |
|---|---|---|
| D |
500 mm
|
Outside diameter |
| B |
155 mm
|
Width |
| D1 |
≈ 425.7 mm
|
Shoulder diameter outer ring |
| F |
299 mm
|
Raceway diameter inner ring |
| s |
max. 3.1 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 |
min. 5 mm
|
Chamfer dimension |
| da |
min. 260 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 298 mm
|
Abutment diameter shaft |
| db |
min. 303 mm
|
Abutment diameter shaft |
| Da |
min. 362 mm
|
Abutment diameter housing |
| Da |
max. 479 mm
|
Abutment diameter housing |
| ra |
max. 4 mm
|
Fillet radius |
| ra |
max. 4 mm
|
Fillet radius |
| Basic dynamic load rating | C |
3 150 kN
|
|---|---|---|
| Basic static load rating | C0 |
4 000 kN
|
| Fatigue load limit | Pu |
345 kN
|
| Reference speed |
1 300 r/min
|
|
| Limiting speed |
1 500 r/min
|
|
| Calculation factor | kr |
0.2
|
| Mass bearing |
143 kg
|
