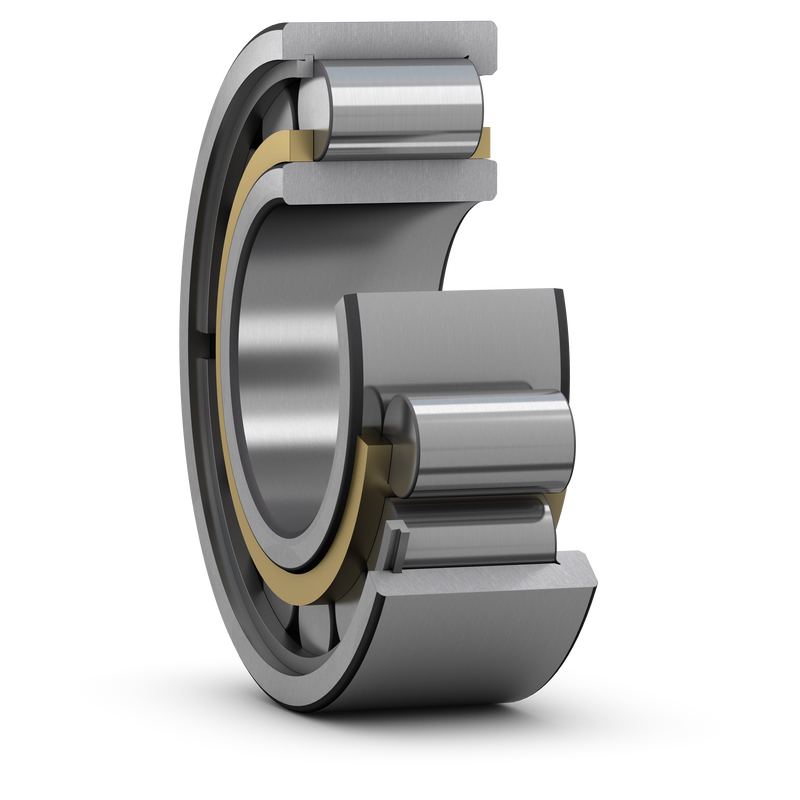

Single row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard, full complement and high capacity bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| SKF performance class |
SKF Explorer
|
| d |
190 mm
|
Bore diameter |
|---|---|---|
| D |
400 mm
|
Outside diameter |
| B |
132 mm
|
Width |
| D1 |
≈ 341.2 mm
|
Shoulder diameter outer ring |
| F |
240 mm
|
Raceway diameter inner ring |
| s |
max. 4.1 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 |
min. 5 mm
|
Chamfer dimension |
| da |
min. 209 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 234 mm
|
Abutment diameter shaft |
| db |
min. 244 mm
|
Abutment diameter shaft |
| Da |
min. 351 mm
|
Abutment diameter housing |
| Da |
max. 380 mm
|
Abutment diameter housing |
| ra |
max. 4 mm
|
Fillet radius |
| ra |
max. 4 mm
|
Fillet radius |
| Basic dynamic load rating | C |
2 240 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 750 kN
|
| Fatigue load limit | Pu |
255 kN
|
| Reference speed |
1 700 r/min
|
|
| Limiting speed |
2 000 r/min
|
|
| Calculation factor | kr |
0.2
|
| Mass bearing |
78.6 kg
|
