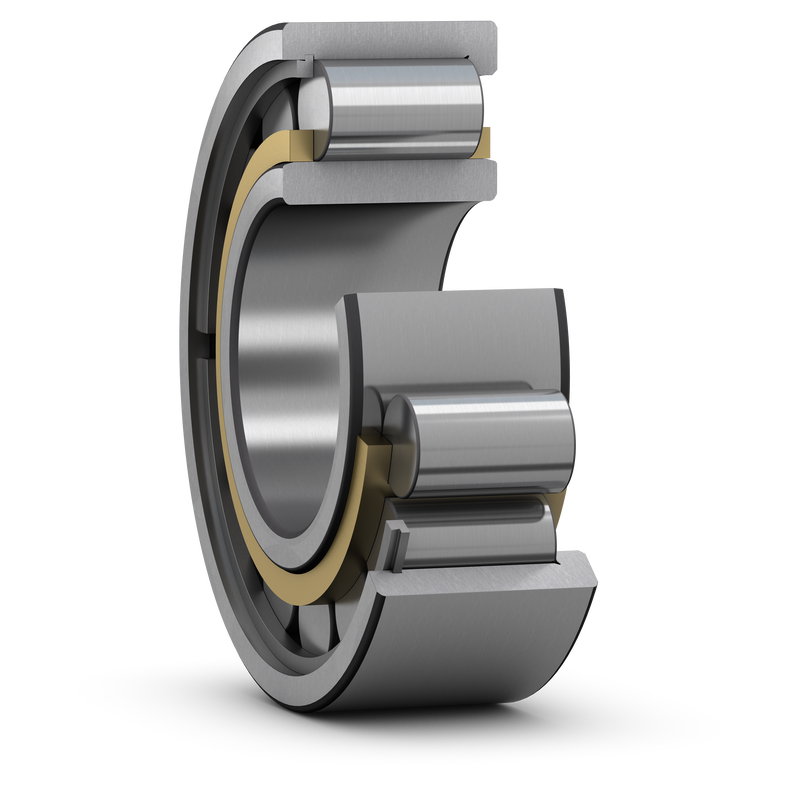

Single row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard, full complement and high capacity bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| SKF performance class |
SKF Explorer
|
| d |
110 mm
|
Bore diameter |
|---|---|---|
| D |
240 mm
|
Outside diameter |
| B |
80 mm
|
Width |
| D1 |
≈ 200 mm
|
Shoulder diameter outer ring |
| F |
143 mm
|
Raceway diameter inner ring |
| s |
max. 2.3 mm
|
Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 |
min. 3 mm
|
Chamfer dimension |
| da |
min. 124 mm
|
Abutment diameter shaft |
|---|---|---|
| da |
max. 139 mm
|
Abutment diameter shaft |
| db |
min. 146 mm
|
Abutment diameter shaft |
| Da |
min. 206 mm
|
Abutment diameter housing |
| Da |
max. 225.2 mm
|
Abutment diameter housing |
| ra |
max. 2.5 mm
|
Fillet radius |
| ra |
max. 2.5 mm
|
Fillet radius |
| Basic dynamic load rating | C |
830 kN
|
|---|---|---|
| Basic static load rating | C0 |
965 kN
|
| Fatigue load limit | Pu |
110 kN
|
| Reference speed |
3 000 r/min
|
|
| Limiting speed |
3 400 r/min
|
|
| Calculation factor | kr |
0.2
|
| Mass bearing |
17.8 kg
|
